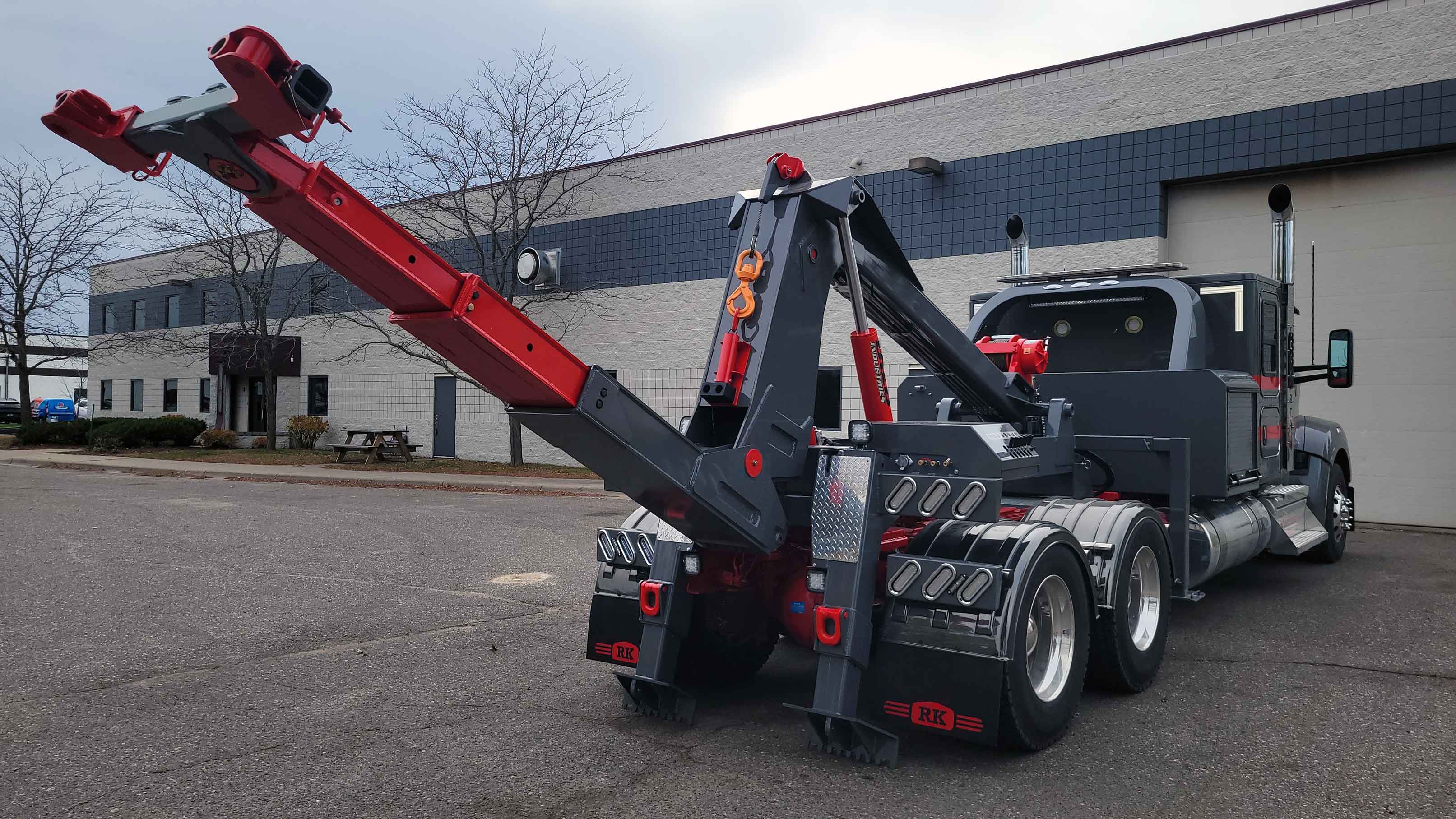

Quick Pick Detach Unit
The Quick Pick unit adds function and versatility to any fleet. Industry leading design and durability positions this lightweight unit as the workhorse of any fleet.
Standard Equipment
Underlift & Boom
- 3 Stage HD Under Lift
- 35,000lb retracted, 15,000lb extended, 114" reach
- 5" Bore Dual Boom lift cylinders
- Fork receivers
- 5 Pairs of frame forks
- Grease fittings all shafts & moving parts
Body & Lighting
- Service air on rear of bed
- 7 way light receptacle
- Federal 108 light group
- Mud flaps
- Upper and lower Work lights
Controls & Rigging

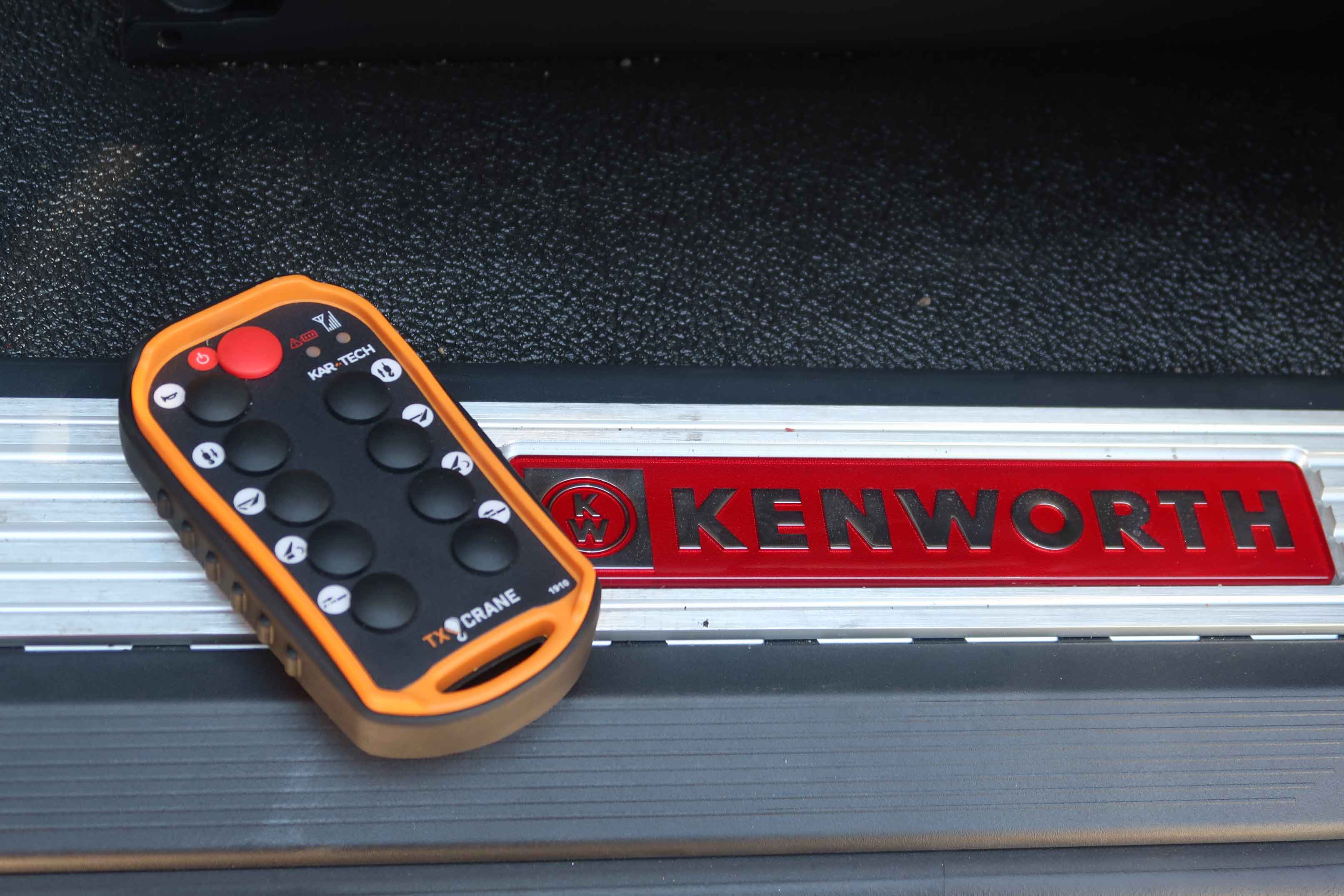

- Full wireless remote
- Wireless Tow Light (TowMate)
- D-Rings on tail board (2)
- Basic strap and chain kit
Available Custom Features
Mounting Options
- Detachable 5th Wheel Plate
- Permanent, bolted directly to truck frame
Under Lift
- 35k low pro under lift/4x4 crossbar 60" ret. 114" ext. Standard
- 50k HD under lift/5x5 crossbar 78" ret. 140" ext.
Winch Options
- None
- Sepson H20K, Manual release, 175 ft 1/2 wire rope
- Warn 20XL, manual release, 150 ft 1/2 wire rope
Stability
- None
- Combo Ice spikes/ under lift heel plate teeth
- Stiff legs, 20" stroke, 20" wide feet, (2) forged D-rings

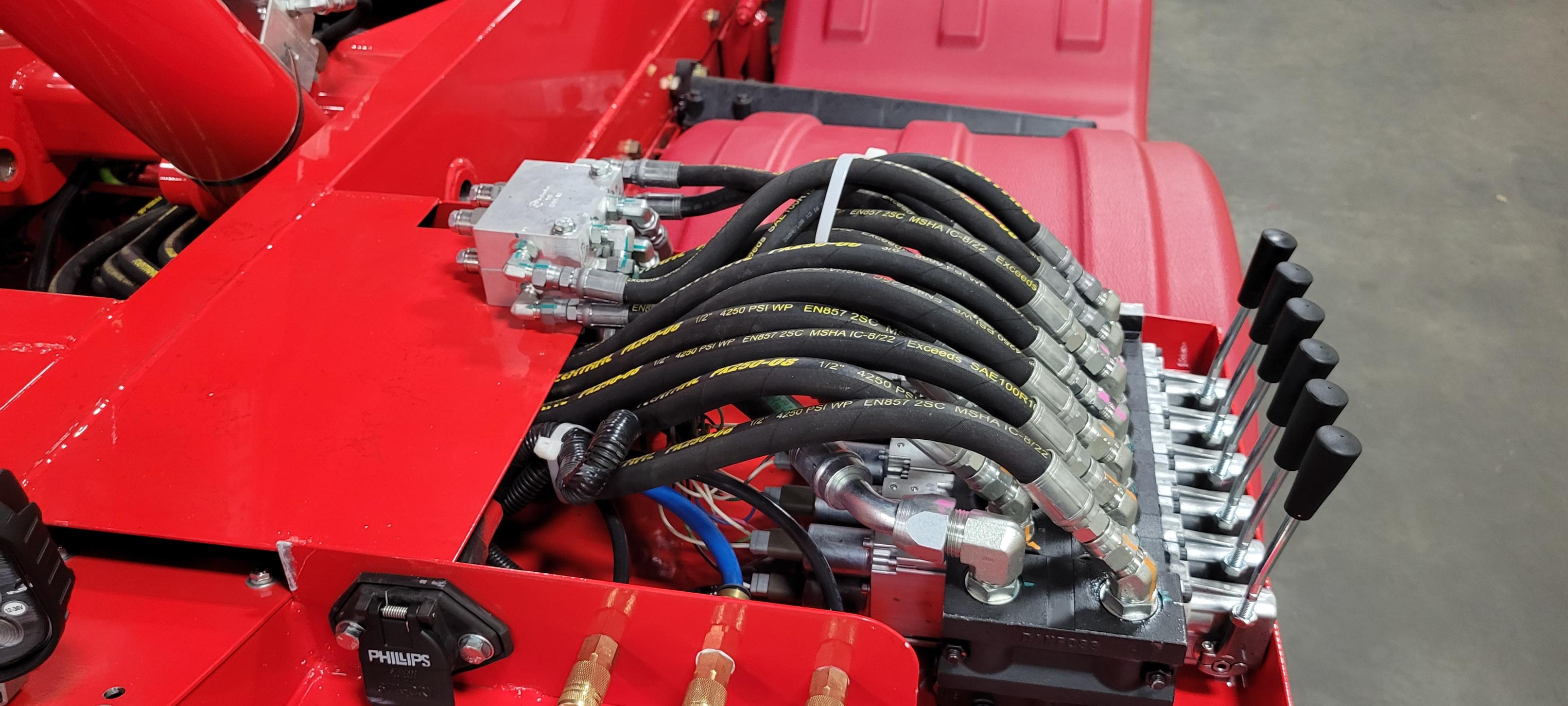

- Dual winch side puller, (2) Sepson H20k, 150 ft synthetic line each, 20" extendable legs/booms, Integrated tank, 6 bank valve with remote, mounted permanently to the tractor 22" of clear frame needed
Storage/Body

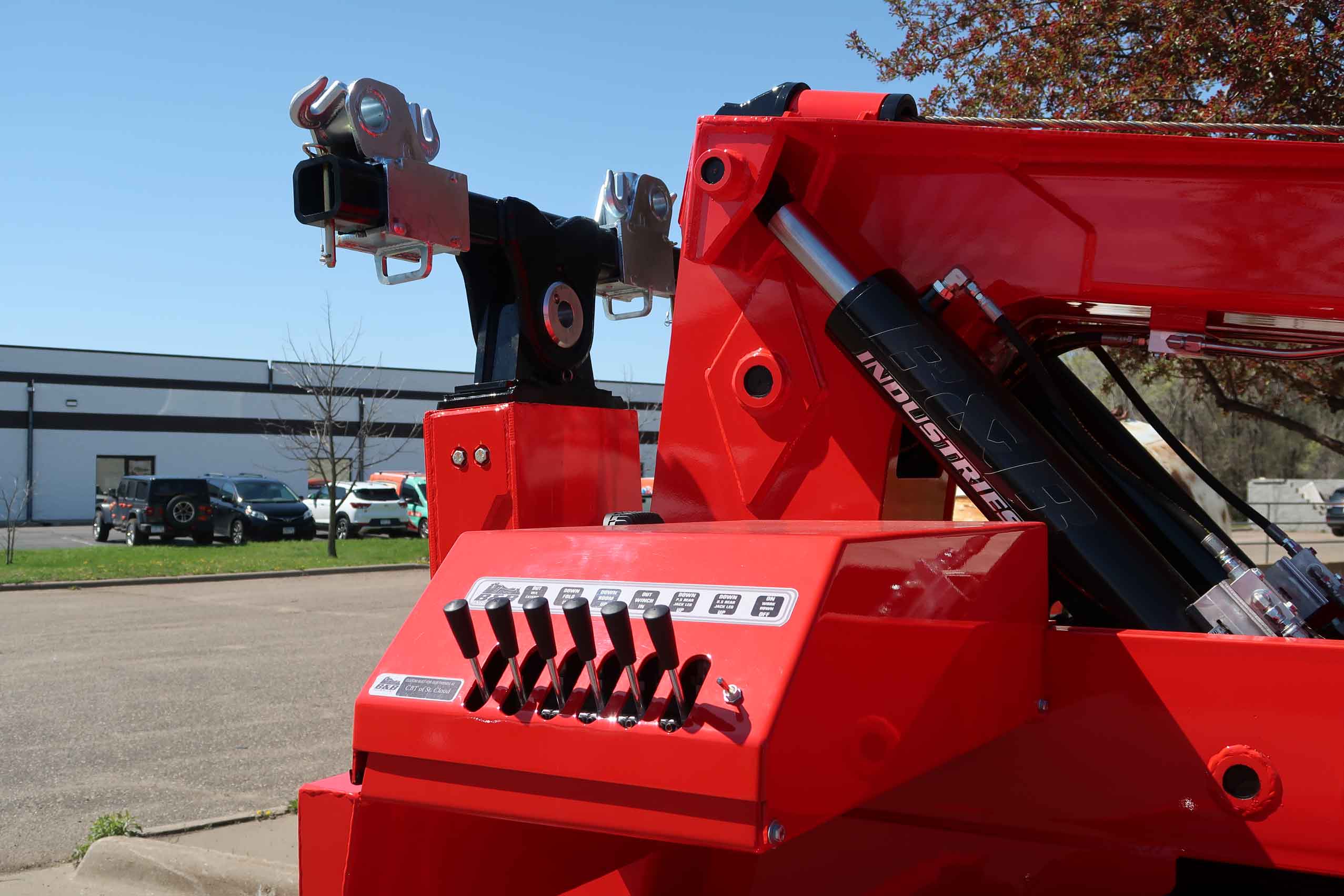

- None, single rear PS control station, integrated into taillight housing
- Front tunnel/saddle box, Multiple sizes available, Color matched rollup doors, Light pylon and light bar, Marker lights with flasher, Interior lighting, dual chain racks

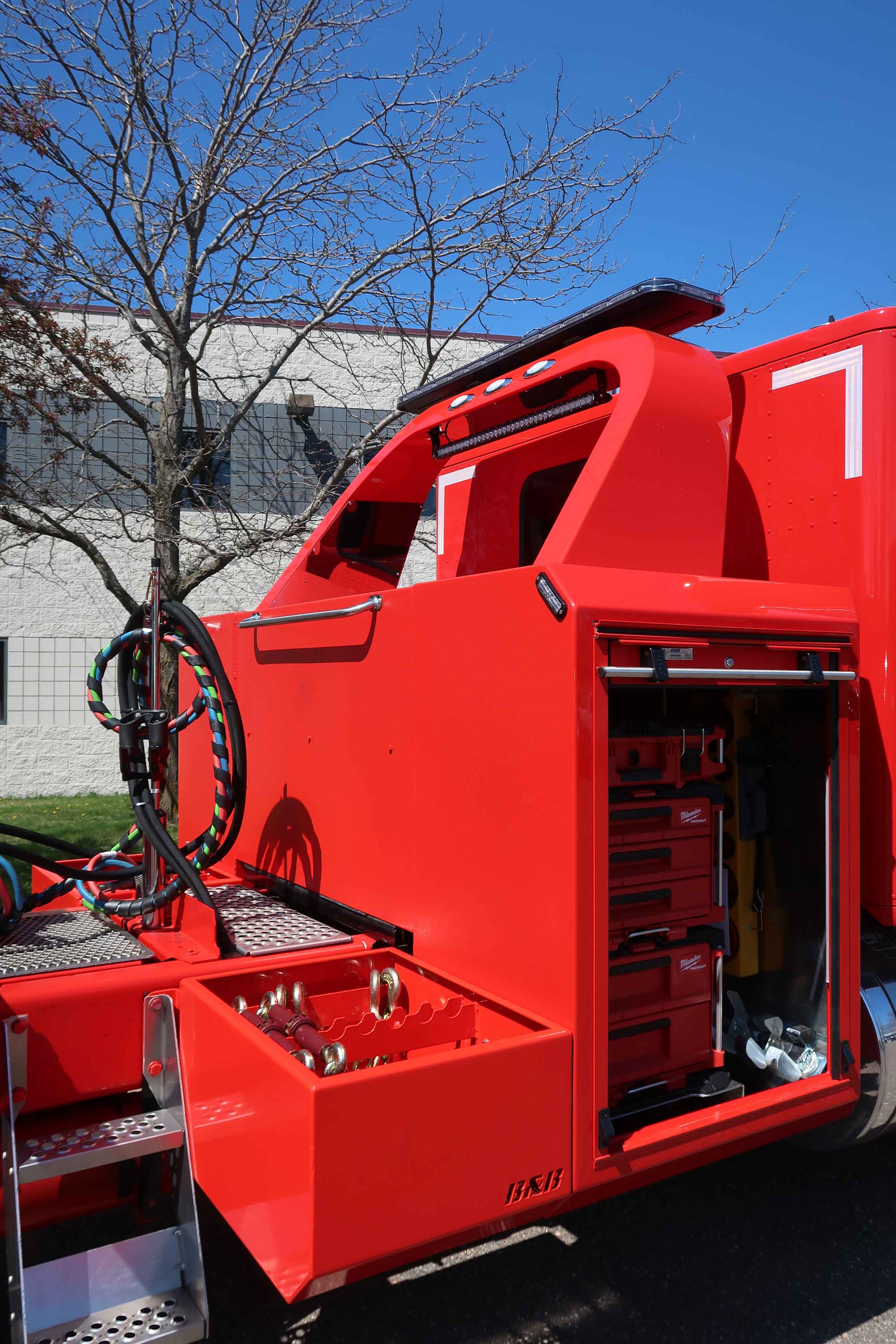

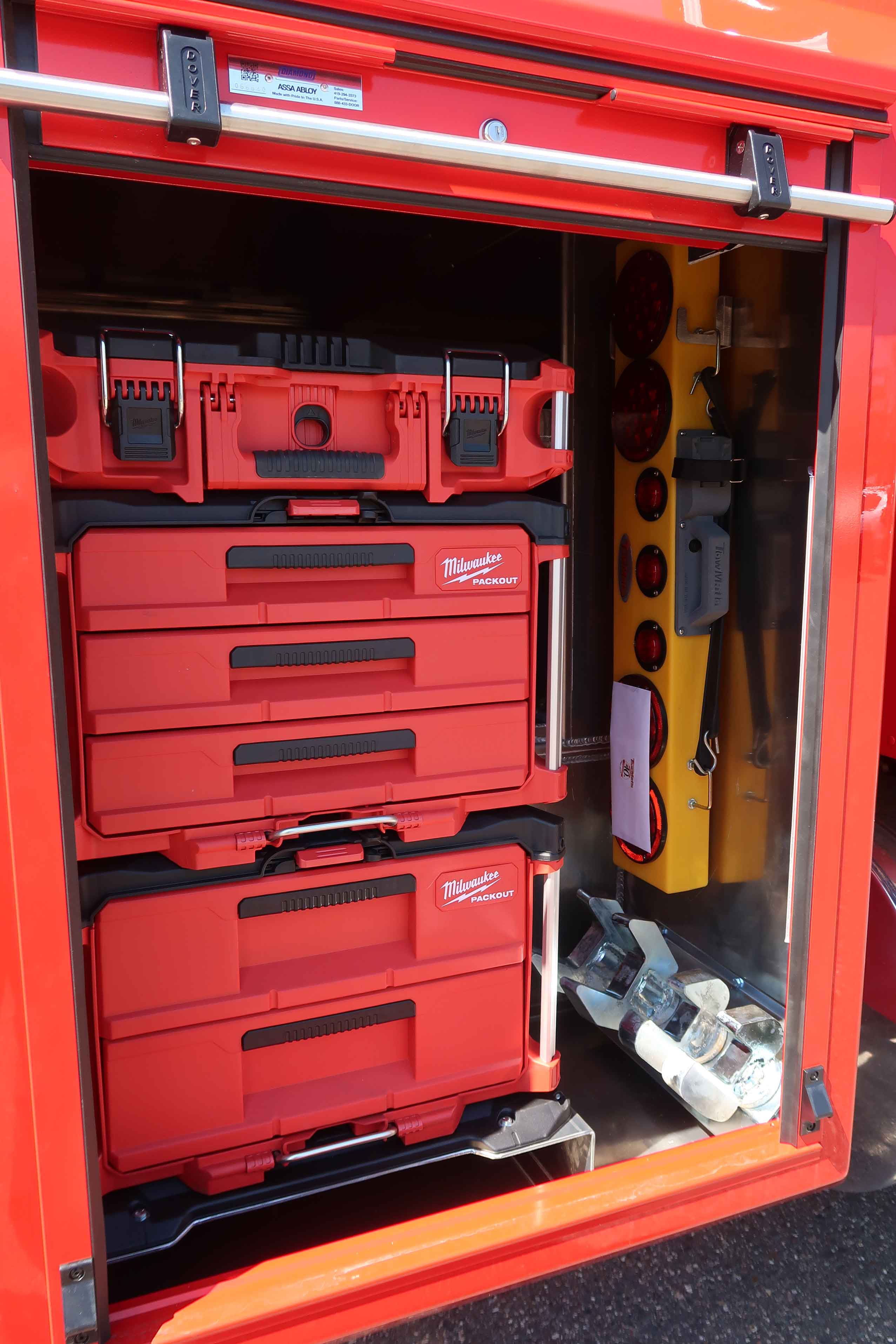

- Rear over axle toolboxes, Color matched rollup doors, Interior lighting, DS/PS enclosed control stations, Aluminum taillights
- Pylon microbars, Twin Ecco Mini bars with fixtures
- Rear side boxes, Iconic metal gear, Brushed aluminum, Satin rollup door.
- In frame toolbox, Iconic metal gear, $750 each, Limit determined by frame length
- Fenders; Customer supplied
Tire Lift Kit

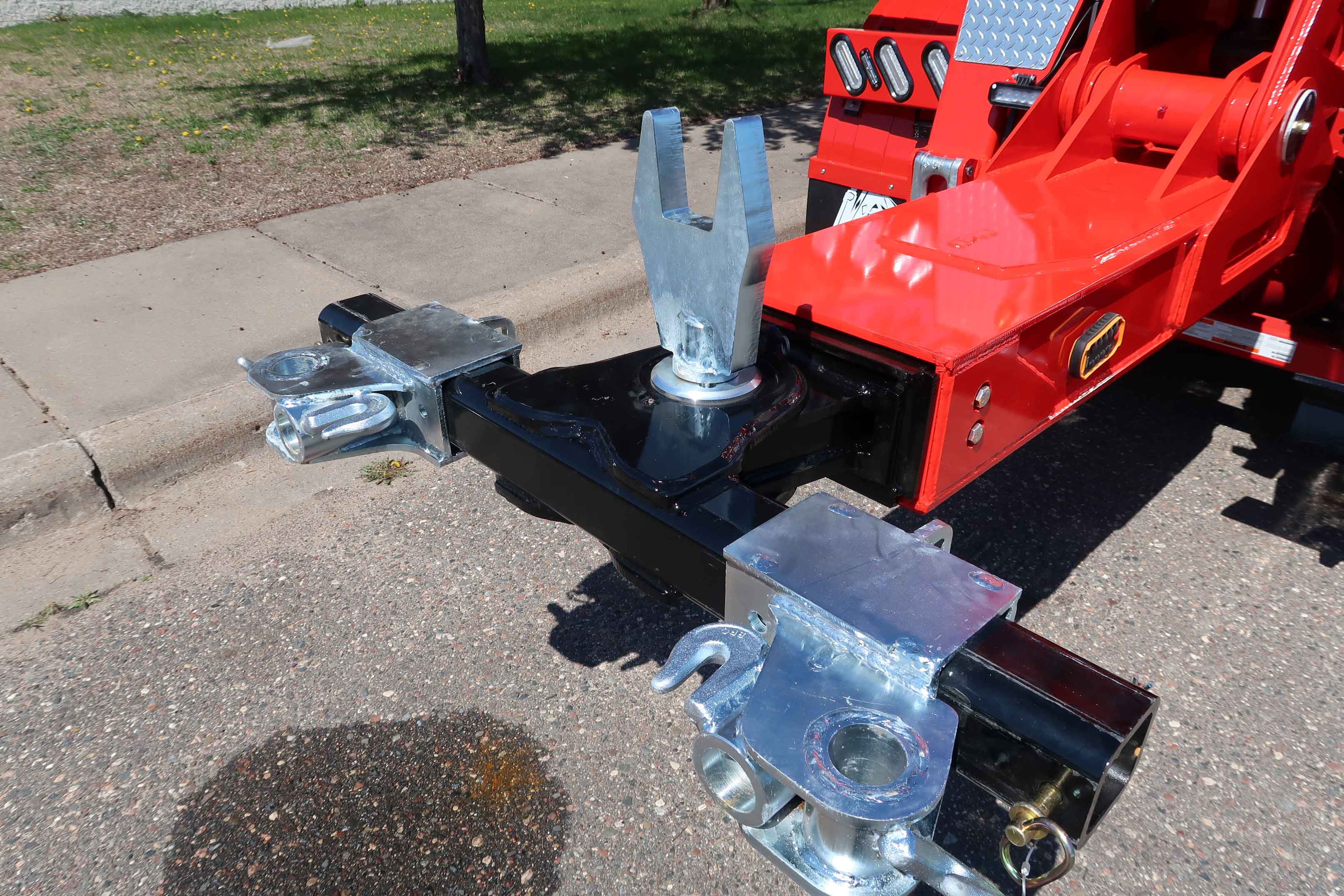

- Standard, Combo offset high stand fork receivers/ 5 sets forks
- Add tire lift receivers, and L arms (8,500# cap.) 35k under lift
- Add Jerrdan Bus Bars (14,000# cap.) 50k under lift only
Accessories
- Class 3 hitch receiver, 5th wheel plate
- Strobe package, 4 rear facing on tailboard, 4 in grille,
- Wet kit, for detach only,
- Backup Camera.
- Synthetic winch line, replaces wire rope, Adds 15% more length.

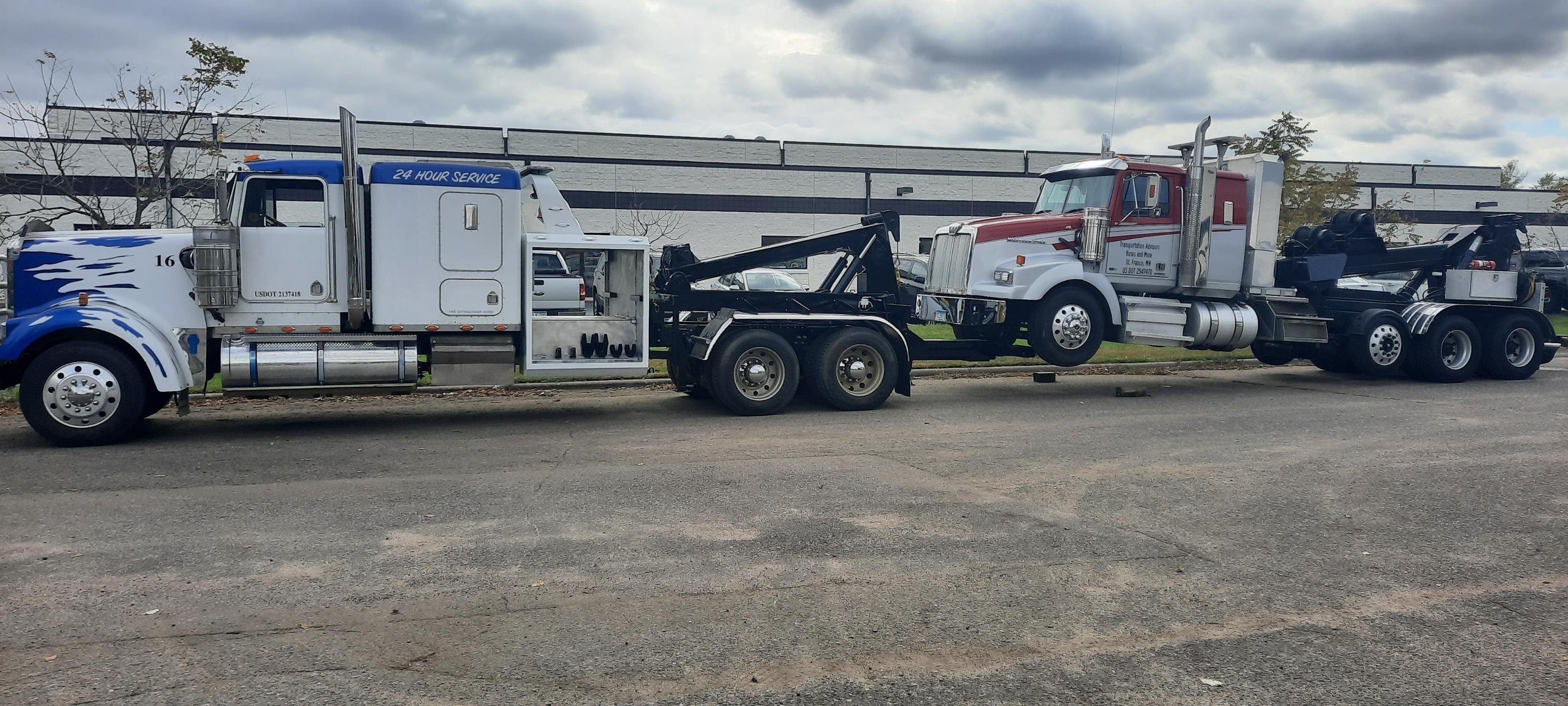

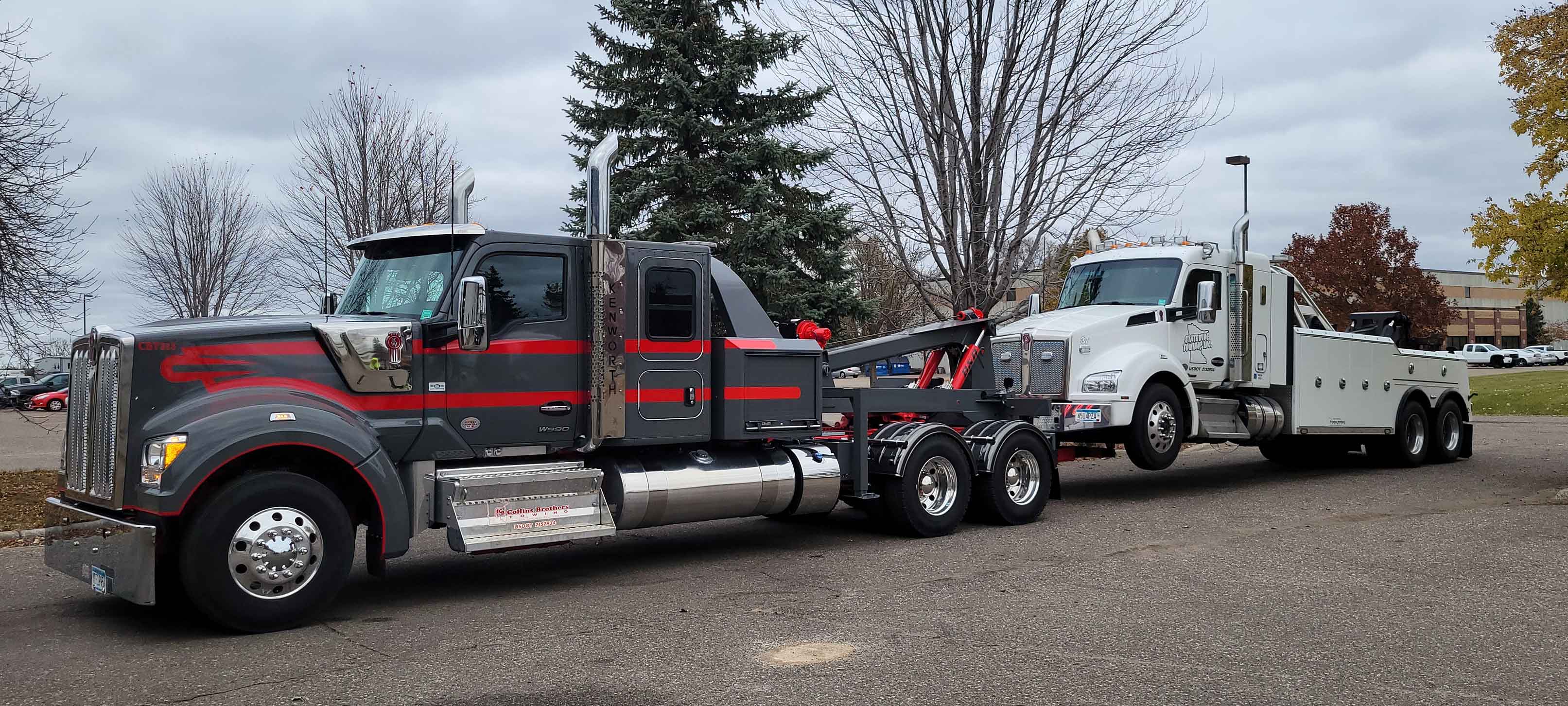

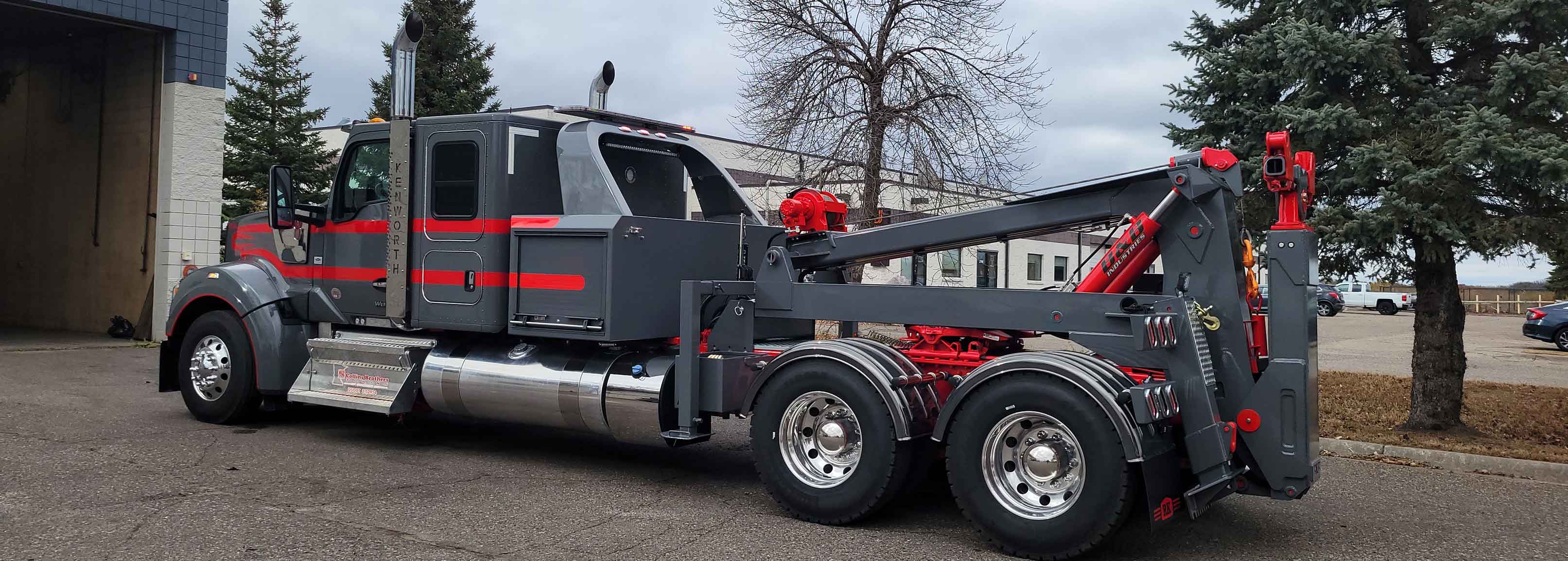

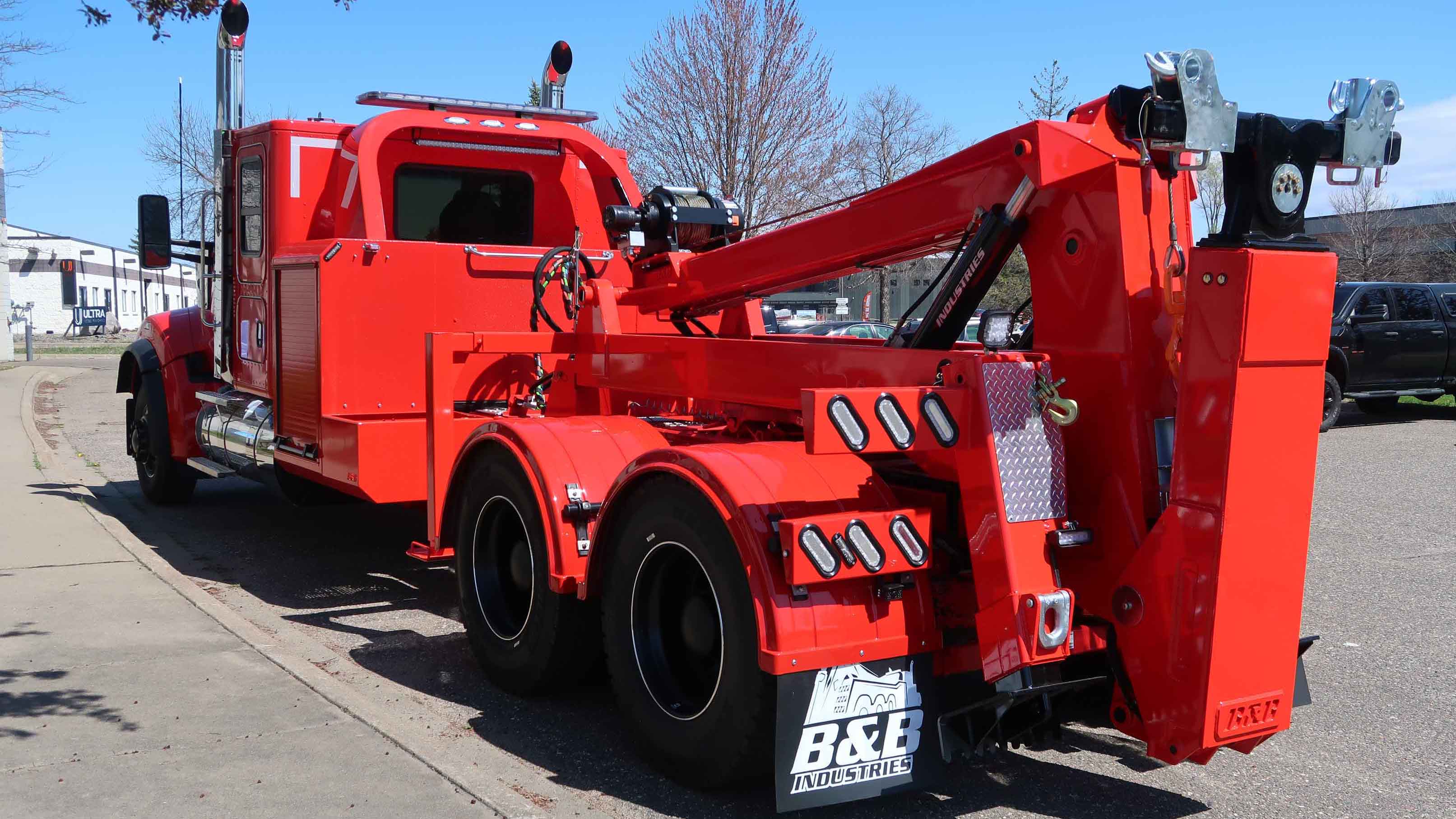

Quick Pick Detach Unit Gallery
