The Legacy Rotator Series
The Legacy Series represents the next chapter of a design philosophy built by industry pioneer Bill Bottoms. Every Legacy Series truck is engineered around the principles that made the Signature Series legendary. Capability Before Compromise - Simplicity Where it Matters - Strength Where it Counts - Thoughtfully Designed with the Operator in Mind - The result is a recovery platform built to serve today's operators and carry forward a legacy of innovation.
B&B
Legacy Series

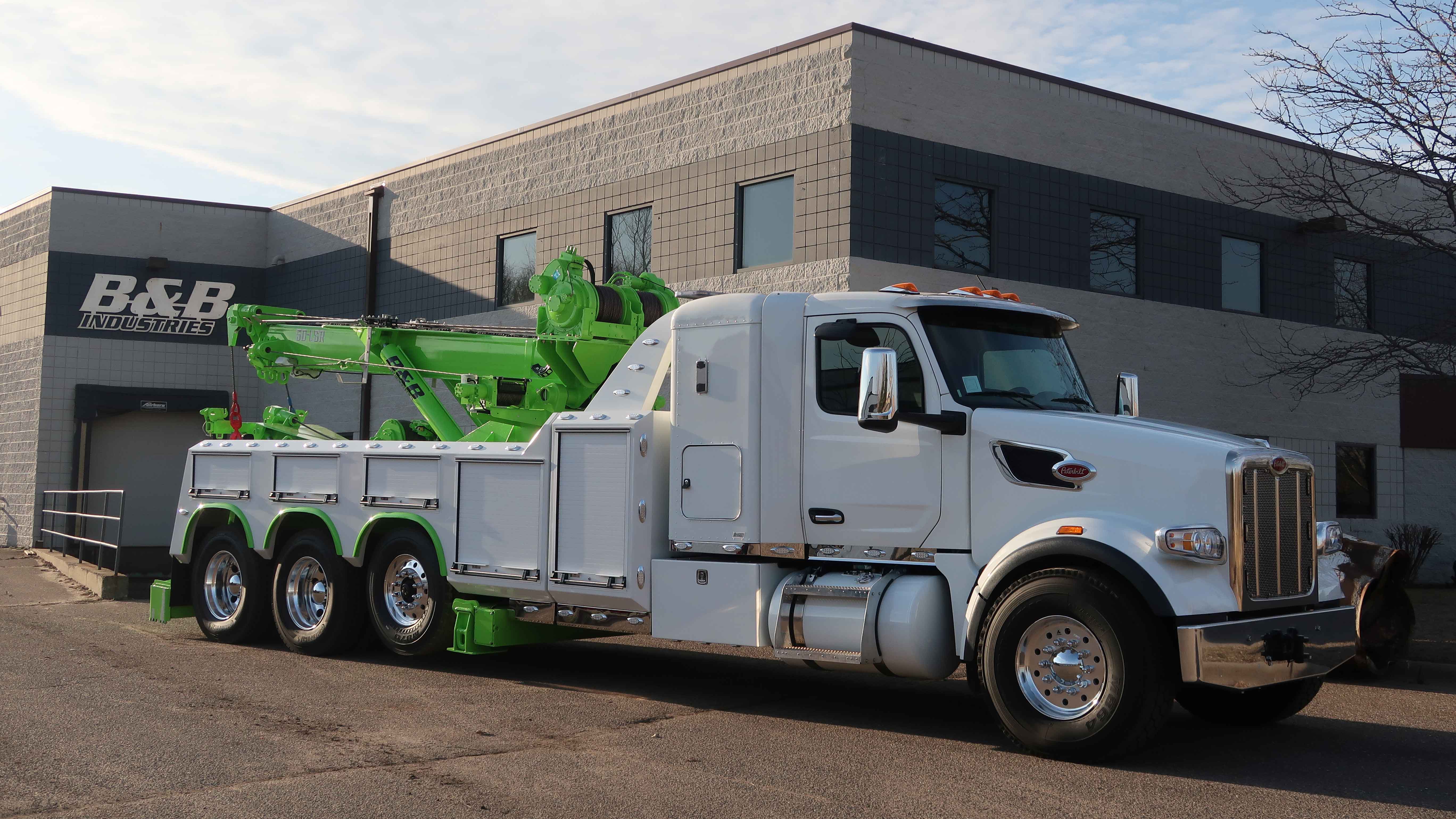

80 LSR · 85 Ton Rotator
Spec Sheet — Standard Equipment

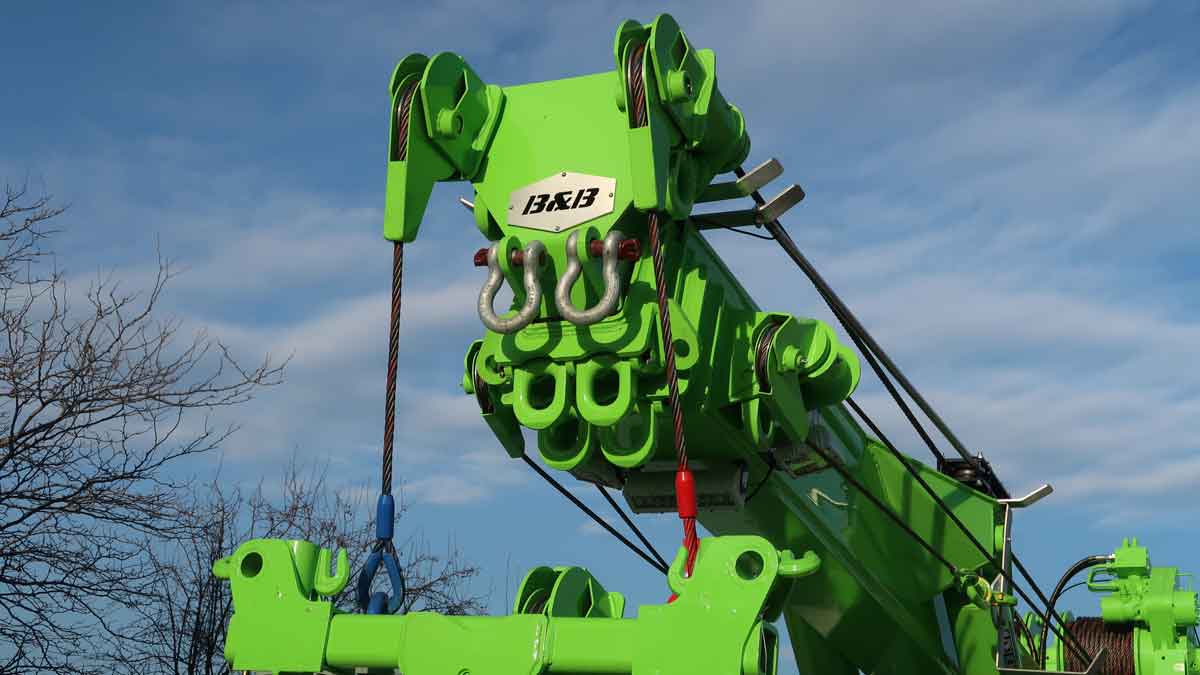

Recovery Boom
- 3 Stage boom
- 360 degrees of continuous rotation
- Boom extension 320"
- Max hook height 522"
- Max angle 48 degrees
- Boom retracted at 30 degrees — 170,000 LBS
- Boom extended at 30 degrees — 31,500 LBS
- Dual 10" lift cylinders
- (10) Boom mounted D-rings

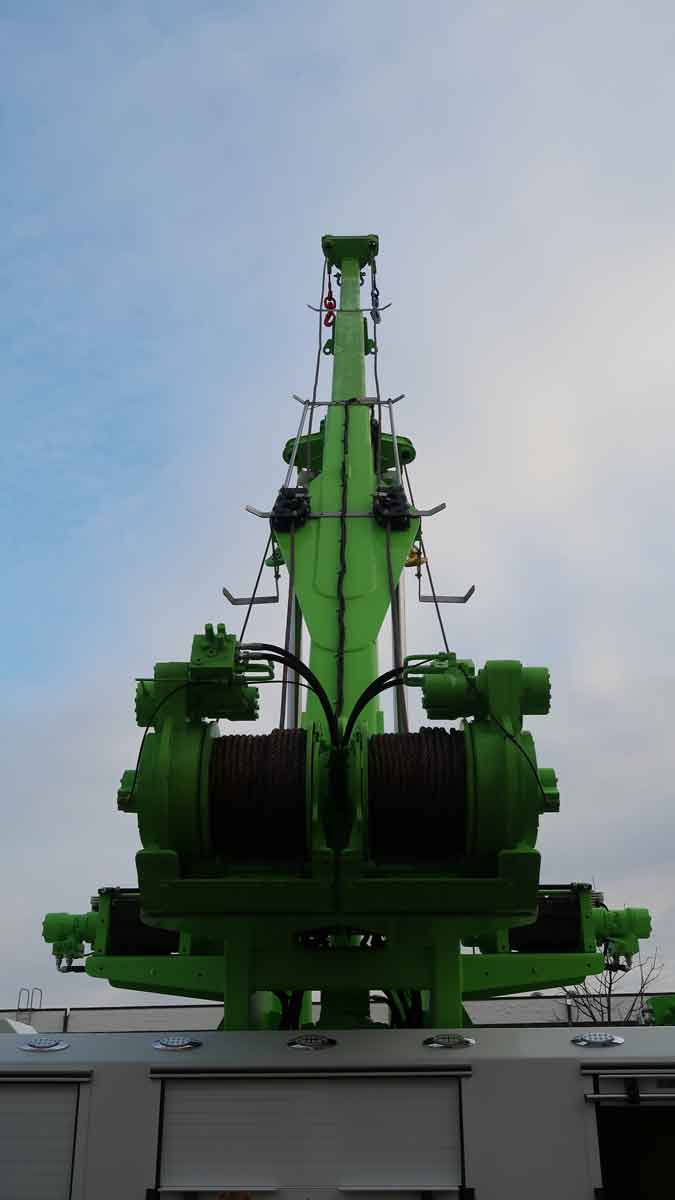

- (2) DP 60K 2 speed main winches
- 200' 7/8 Cable
- (2) Sepson H20k Catch winches
- 150' 1/2" Cable
- Boom wing cable protectors
50K Drag Winch
- Under lift boom mounted drag winch
- Ramsey Herc 50K drag winch
- 200' 7/8 Cable
- Anchor points on tailboard (10)
Stabilizers
- Front 3 stage Low legs — 270" stance
- Rear 3 stage Low legs — 270" stance
- Flip down anchor feet

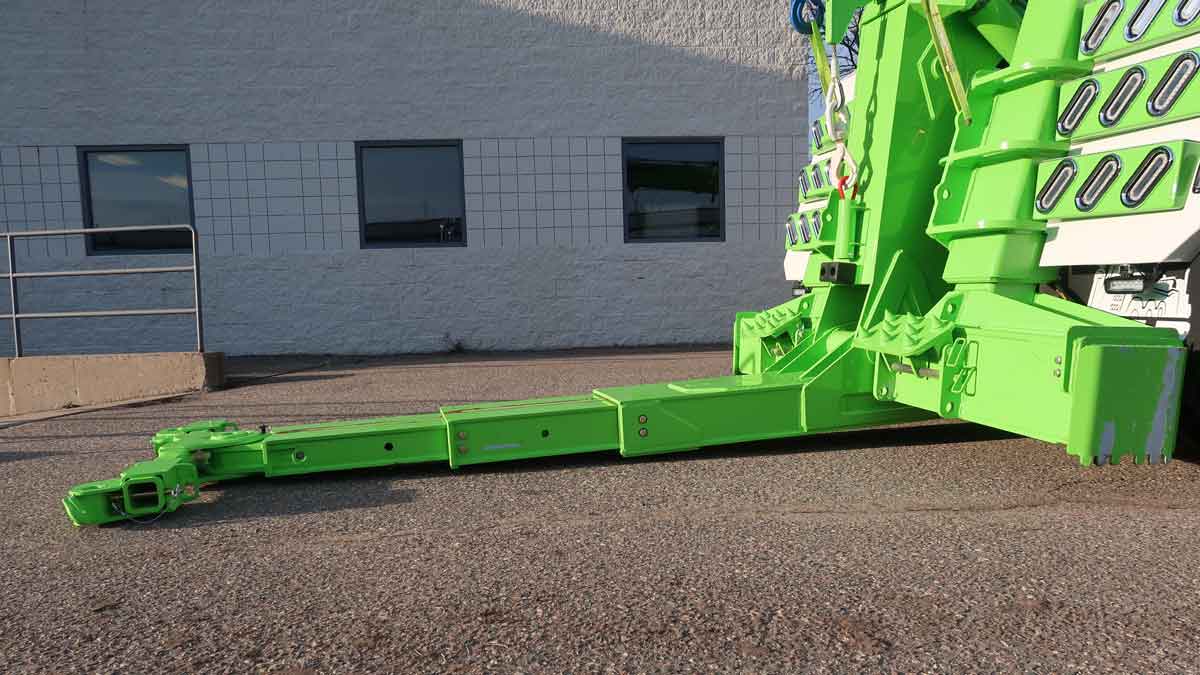

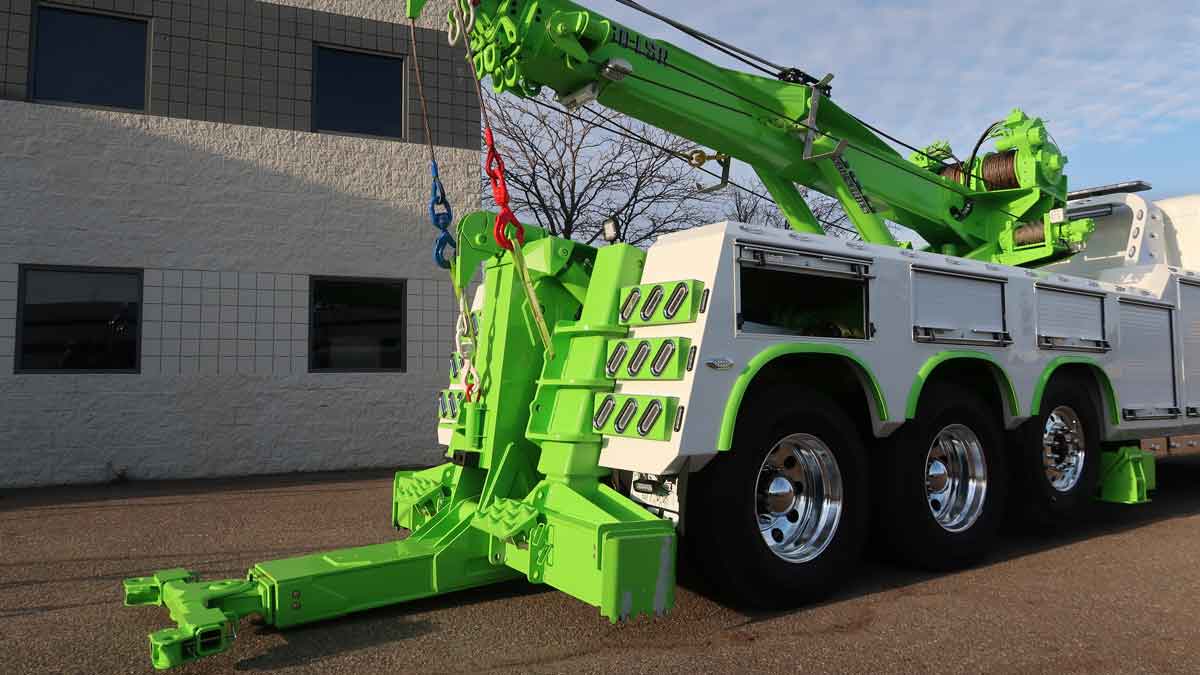

50K Under lift
- 3 stage HD under lift
- 50,000 LBS at 63" retracted
- 18,000 LBS at 143" extended
- 10 Degrees negative tilt
- 5x5 crossbar
- Combo offset / high stand receivers
- 5 sets of forks

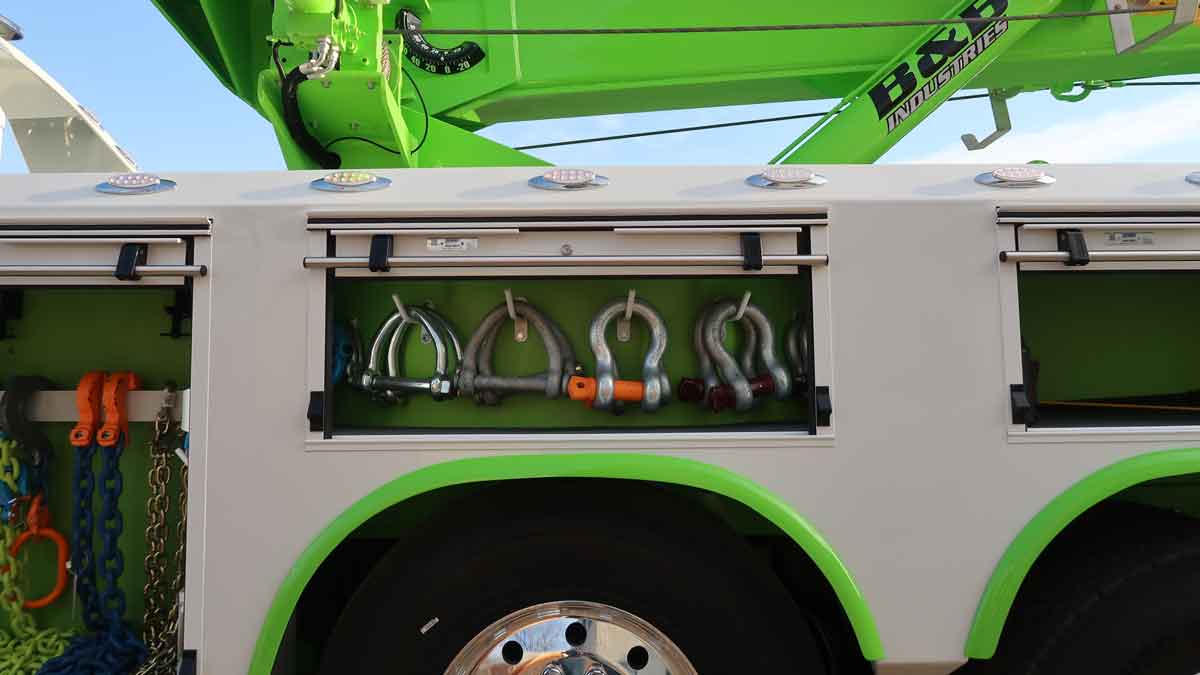

Body

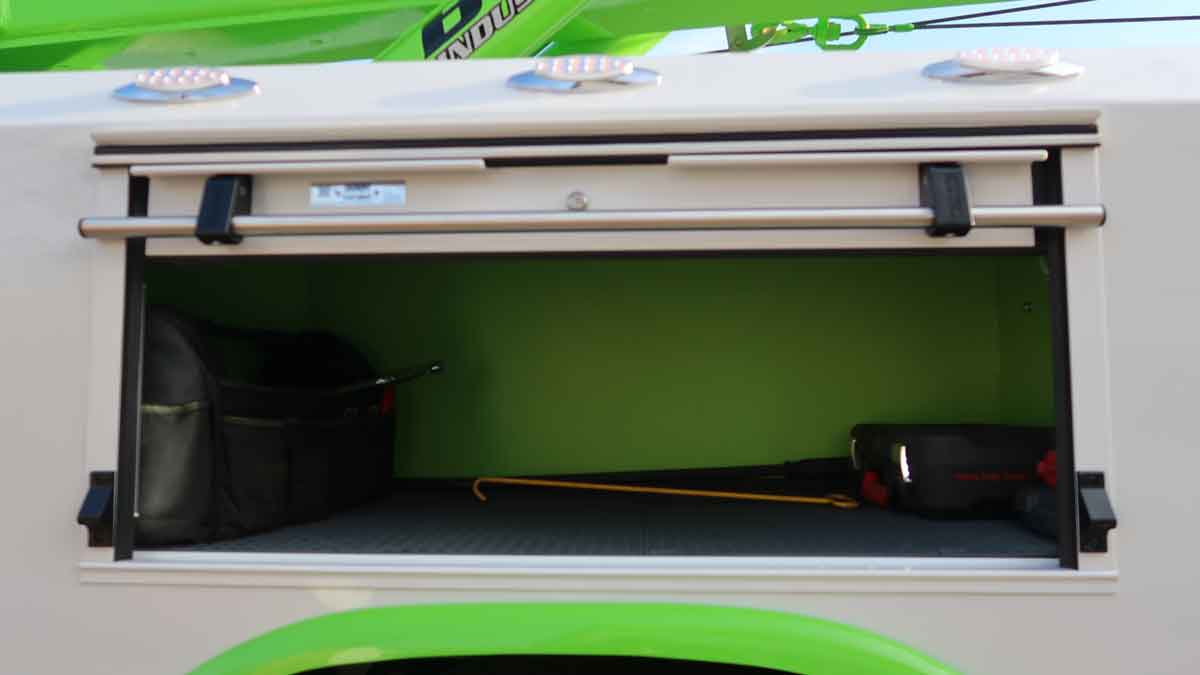

- All aluminum contoured body
- Aerodynamic light pylon
- Powder coated to match rollup doors
- Raptor liner box tops and front
- 7 way / Service air on rear of body
- Upper and lower under lift work lights
- Weatherproof wiring harness
- Led strobe light bar

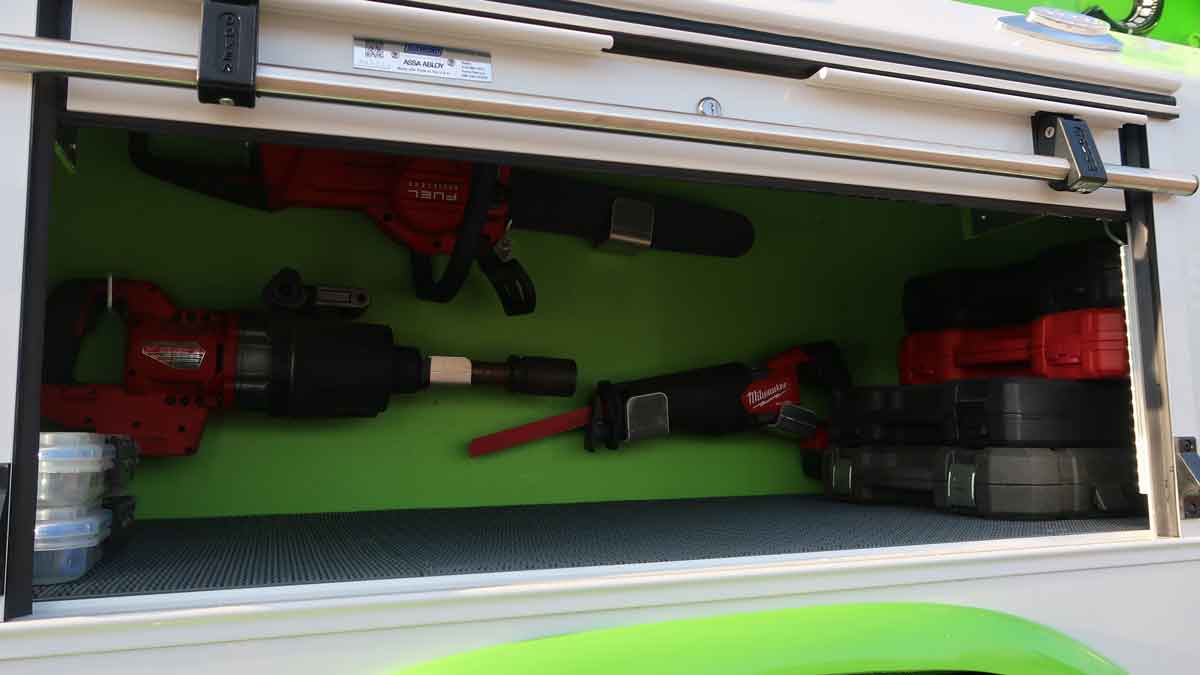

- Led toolbox lighting
- Towmate light bar
- Federal 108 standard clearance lighting

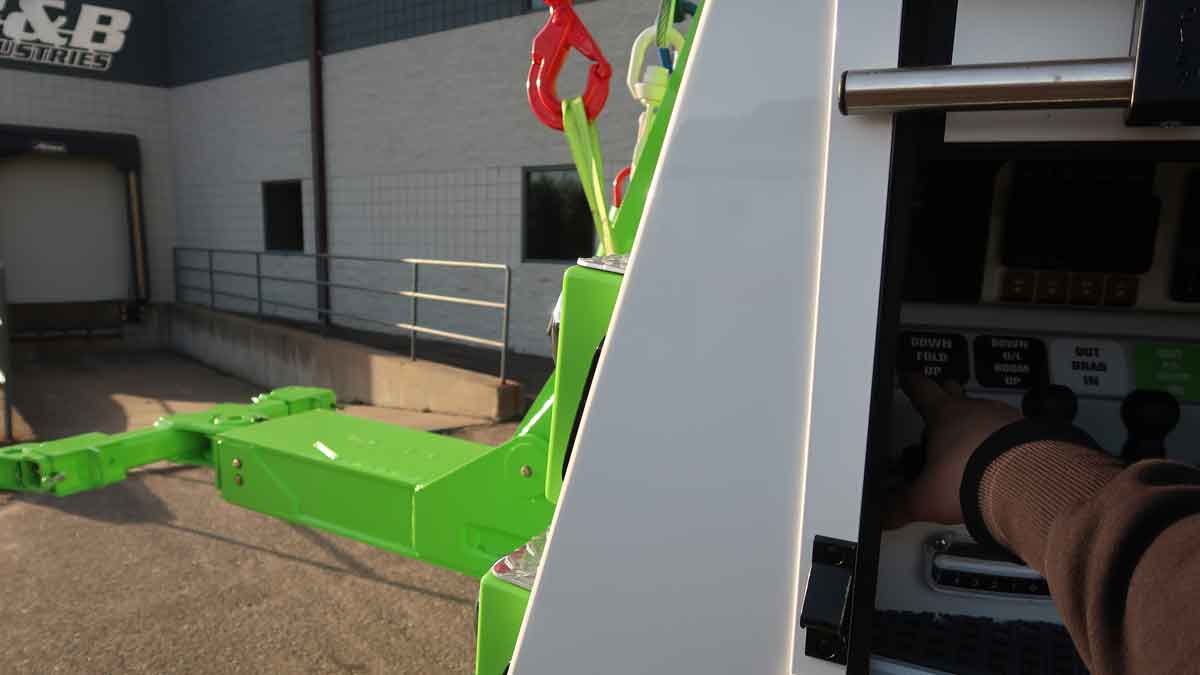

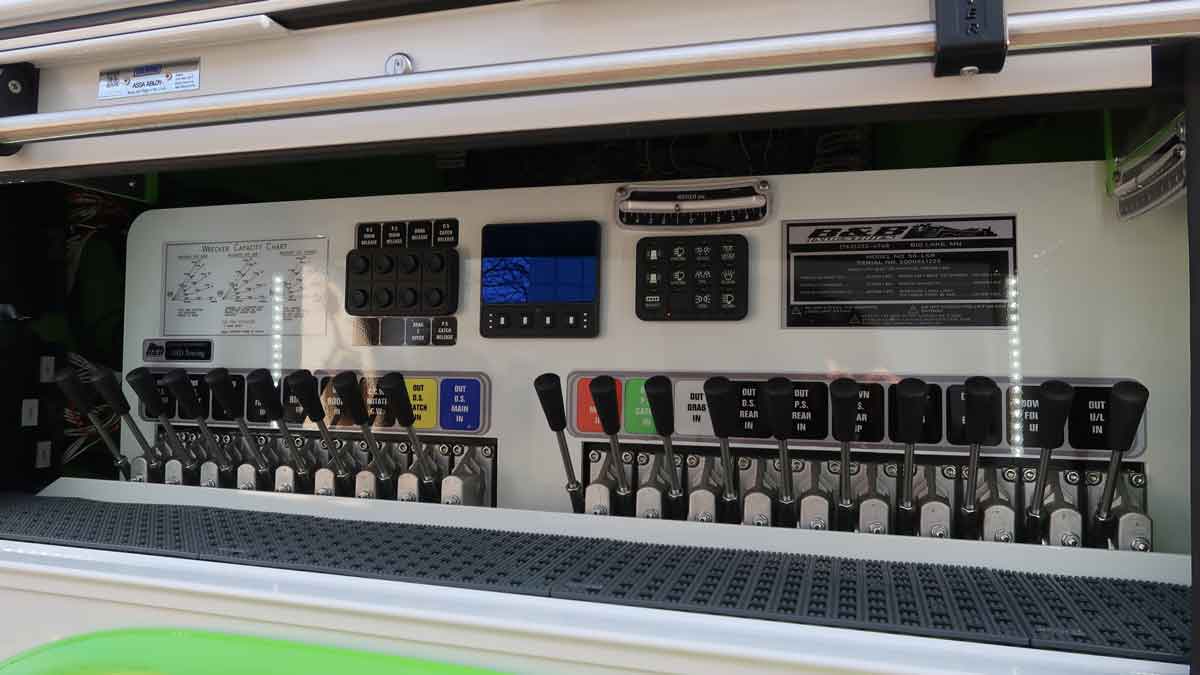

- Dual enclosed control stations

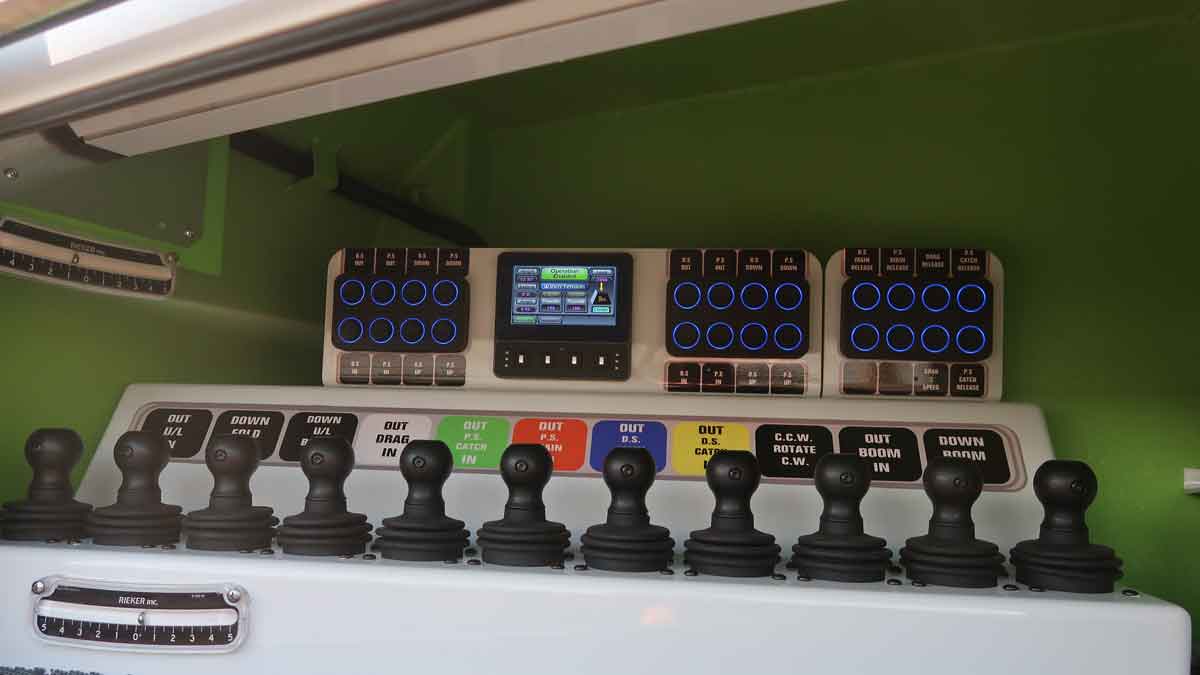

- 16 function switch panel, paired with in cab panel
- Load sense scale system
- DS direct mounted valve controls
- PS electric proportional joystick controls

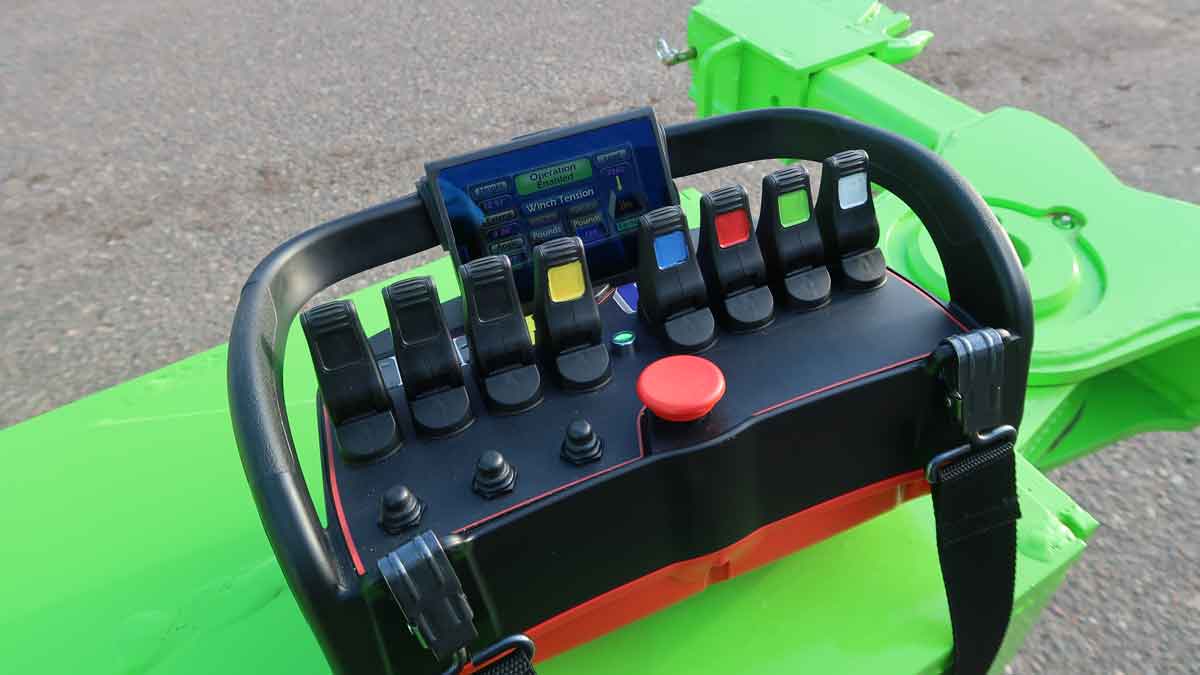

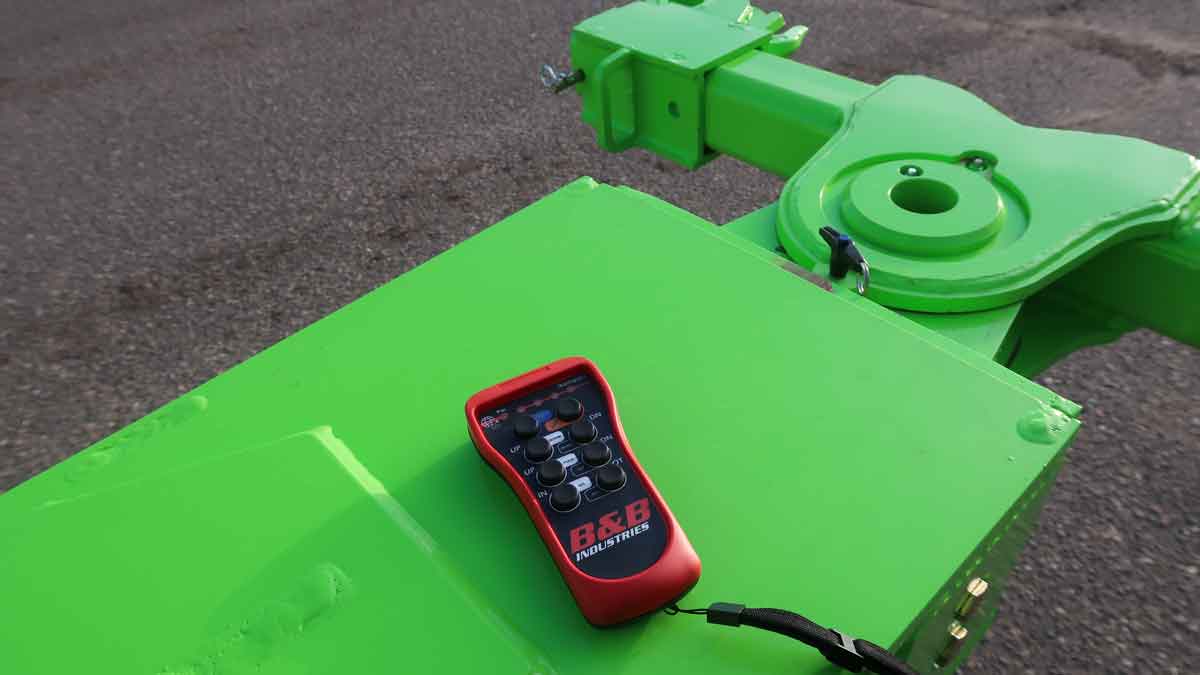

- Full proportional wireless remote
- Basic chain and tie down kit
- Pair of safety chains
- Toolbox chain rack

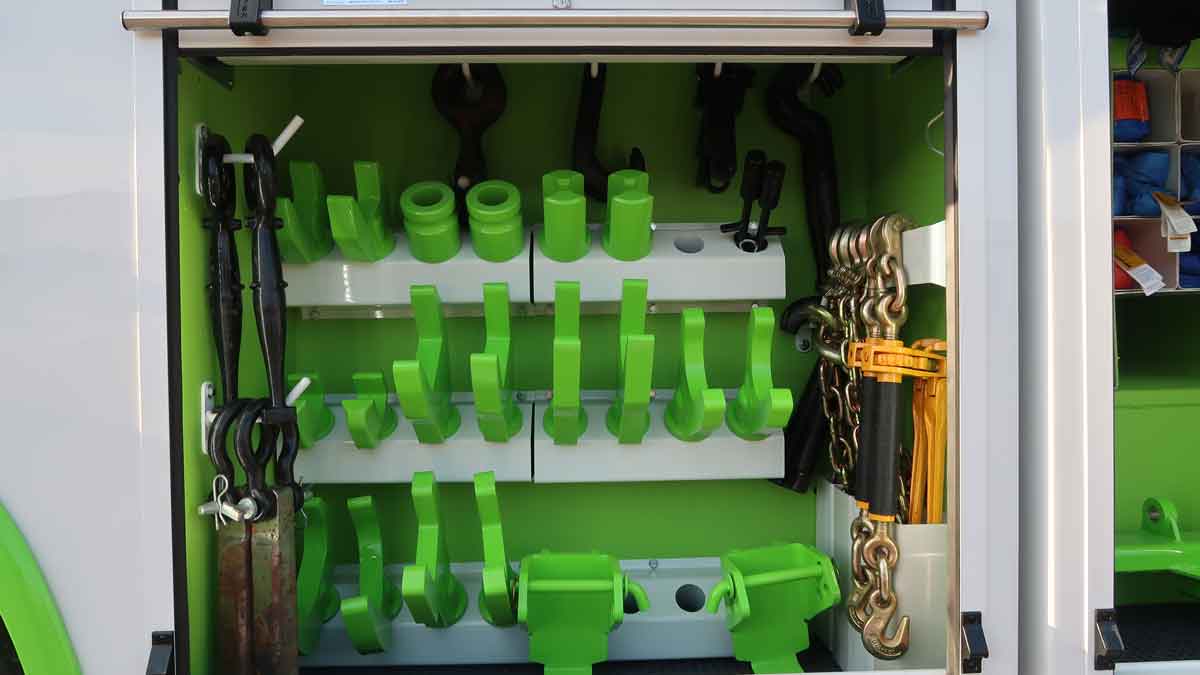

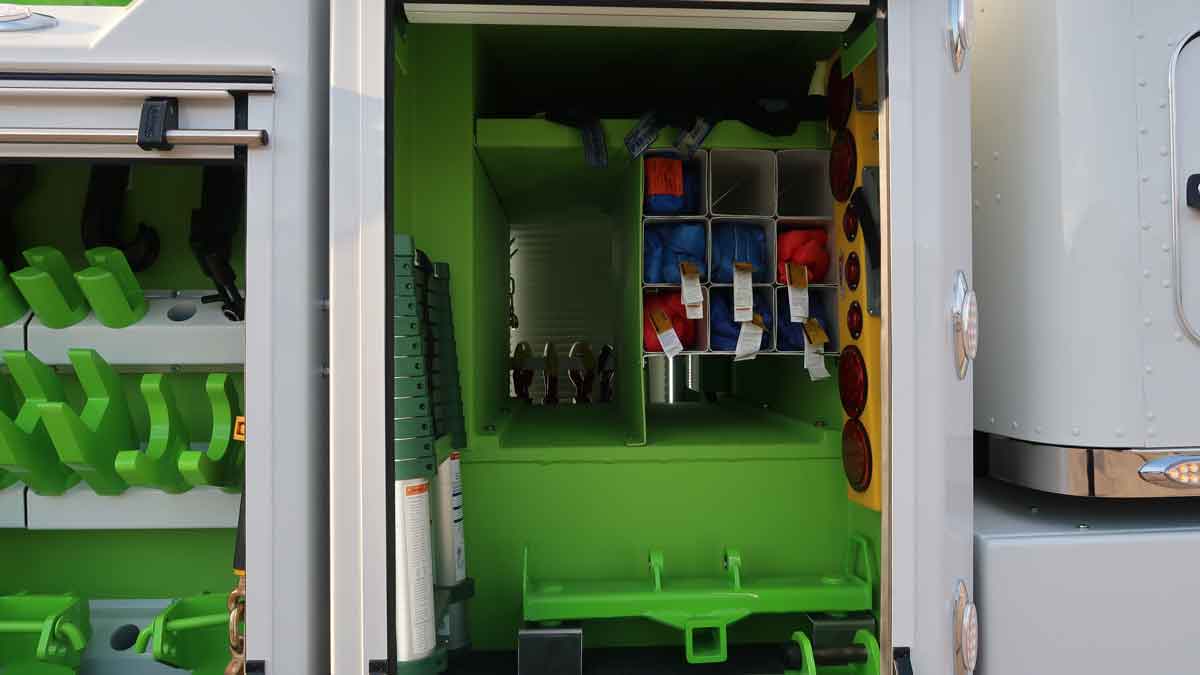

- Fork holders (16)
B&B
Legacy Series
50 LSR · 50 Ton Rotator
Spec Sheet — Standard Equipment
Recovery Boom
- 3 Stage boom
- 360 degrees of continuous rotation
- Boom extension 240"
- Max hook height 445"
- Max angle 53 degrees
- Boom retracted at 50 degrees 100,000LB'S
- Boom extended at 50 degrees 32,500LB'S
- Dual 7" lift cylinders
- (4) Boom mounted D-rings
- (2) Sepson H50K 2 speed main winches
- 200' 3/4 Cable
- Boom wing cable protectors
Under lift
- 3 stage Low Pro under lift
- 35,000LB'S at 51" retracted
- 15,000LB'S at 114" extended
- 10 Degrees negative tilt
- 4x4 crossbar
- Combo offset/ high stand receivers
- 5 sets of forks
- Optional upgrade to 50k underlift as described in 80k rotator
Drag Winch
- Under lift boom mounted drag winch
- Sepson H35K drag winch
- 250' 5/8 Cable
- Anchor points on tailboard (10)
Stabilizers
- Front 3 stage Low legs 272" stance
- Rear 4 stage split low legs 222" stance
- Flip down anchor feet/spike pads
- Split leg locking beam
Body
- All aluminum contoured body
- Aerodynamic light pylon
- Powder coated to match rollup doors
- Raptor liner box tops and front
- 7way/ Service air on rear of body
- Upper and lower under lift work lights
- Weatherproof wiring harness
- Led strobe light bar
- Led toolbox lighting
- Towmate light bar
- Federal 108 standard clearance lighting
- Dual enclosed control stations
- 16 function switch panel, paired with in cab panel
- DS direct mounted valve controls
- PS electric proportional joystick controls
- Load sense scale system with individual line tension
- Full proportional wireless remote
- Basic chain and tie down kit
- Pair of safety chains
- Toolbox chain rack
- Fork holders (16)
B&B
Legacy Series
40 LSR · 40 Ton Rotator
Spec Sheet — Standard Equipment
Recovery Boom
- 180 degrees of rotation cw/ccw
- Boom extension 168"
- Max hook height 388"
- Max reach off tail 183"
- Max reach off side 290"
- Reach off side at max elevation 130"
- Boom retracted at 55 degrees — 85,000 LBS
- Boom extended at 55 degrees — 27,500 LBS
- Dual 6" lift cylinders
- (4) Boom mounted D-rings
- (2) Sepson H35K 2 speed main winches
- 250' 5/8 Cable
- Boom wing cable protectors
Under lift
- 3 stage HD under lift
- 35,000 LBS at 51" retracted
- 15,000 LBS at 114" extended
- 10 Degrees negative tilt
- 4x4 crossbar
- Combo offset / high stand receivers
- 5 sets of forks
- Optional upgrade to 50k underlift as described in 80k rotator
Drag Winch
- Under lift boom mounted drag winch
- Sepson H35K drag winch
- 250' 5/8 Cable
- Anchor points on tailboard (10)
Stabilizers
- Front single stage Low legs — 222" Stance
- Rear 2 stage low legs — 170" stance
- Flip down spike pads
Body
- All aluminum contoured body
- Aerodynamic light pylon
- Powder coated to match rollup doors
- Raptor liner box tops and front
- 7 way / Service air on rear of body
- Upper and lower under lift work lights
- Weatherproof wiring harness
- Led strobe light bar
- Led toolbox lighting
- Towmate light bar
- Federal 108 standard clearance lighting
- Dual enclosed control stations
- 16 function switch panel, paired with in cab panel
- Load sense scale system
- DS direct mounted valve controls
- PS electric proportional joystick controls
- Full proportional wireless remote

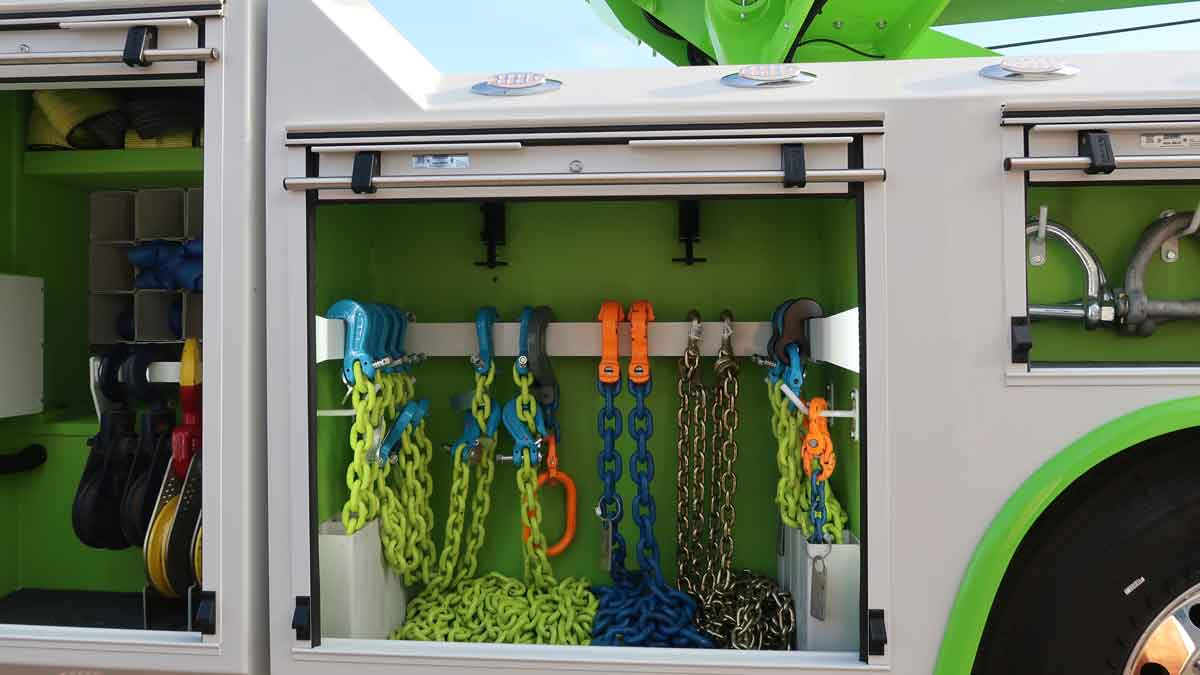

- Basic chain and tie down kit
- Pair of safety chains
- Toolbox chain rack
- Fork holders (16)

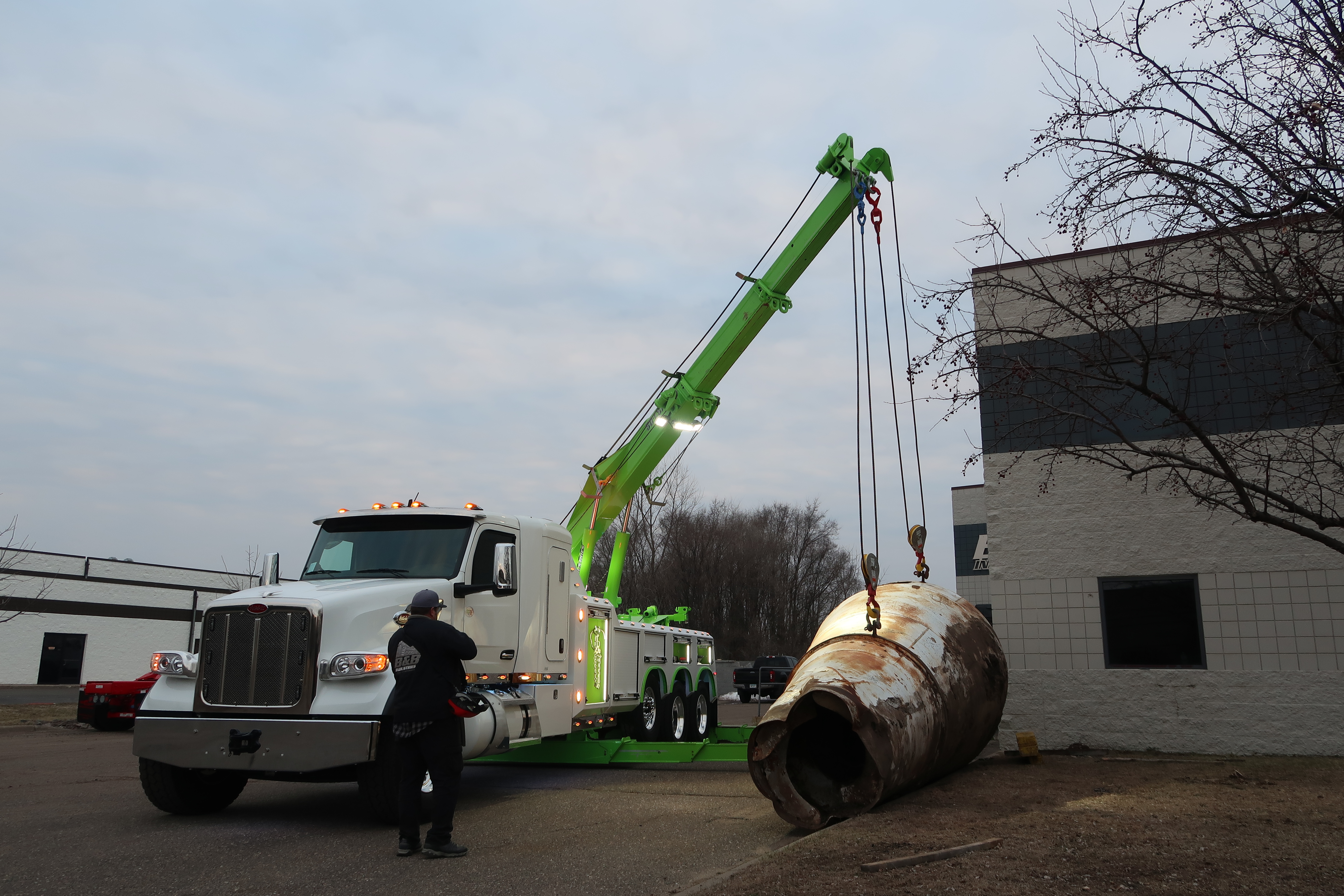

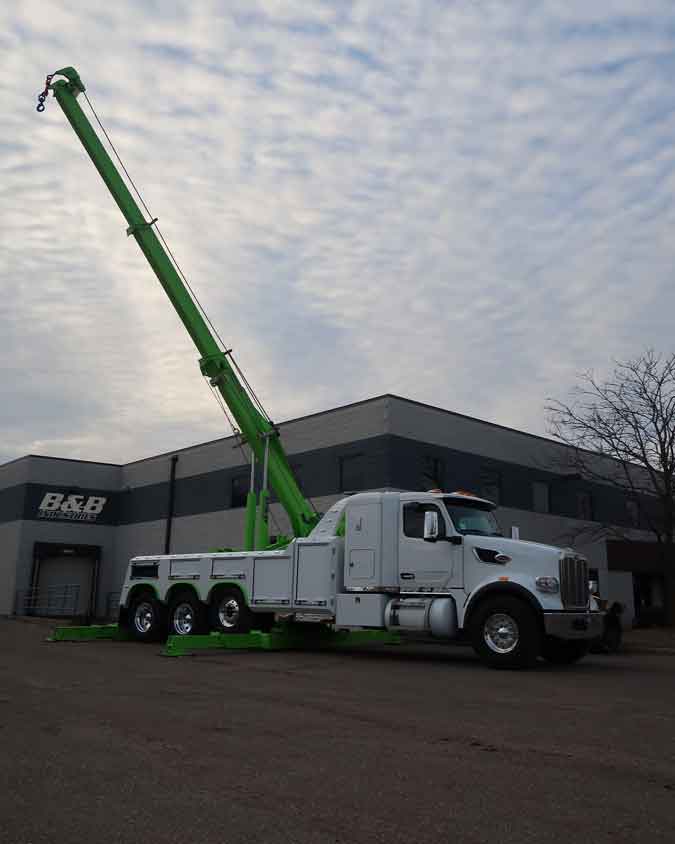

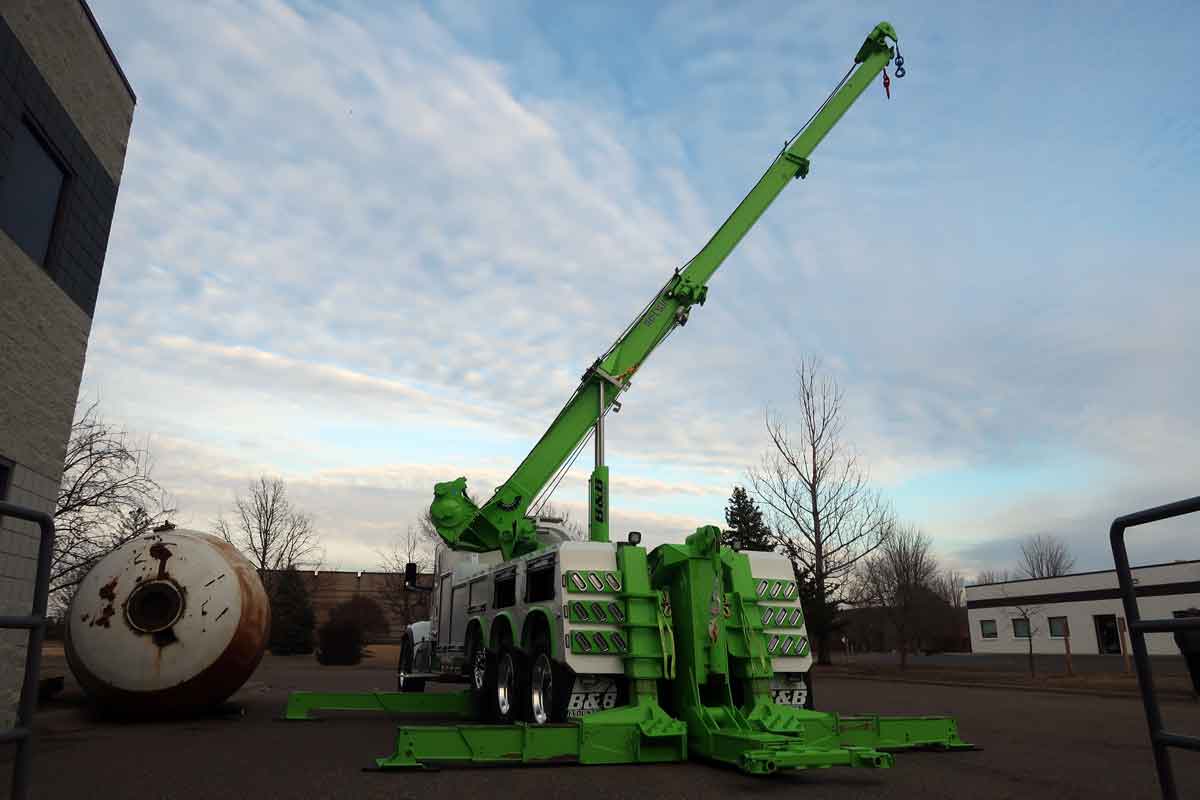

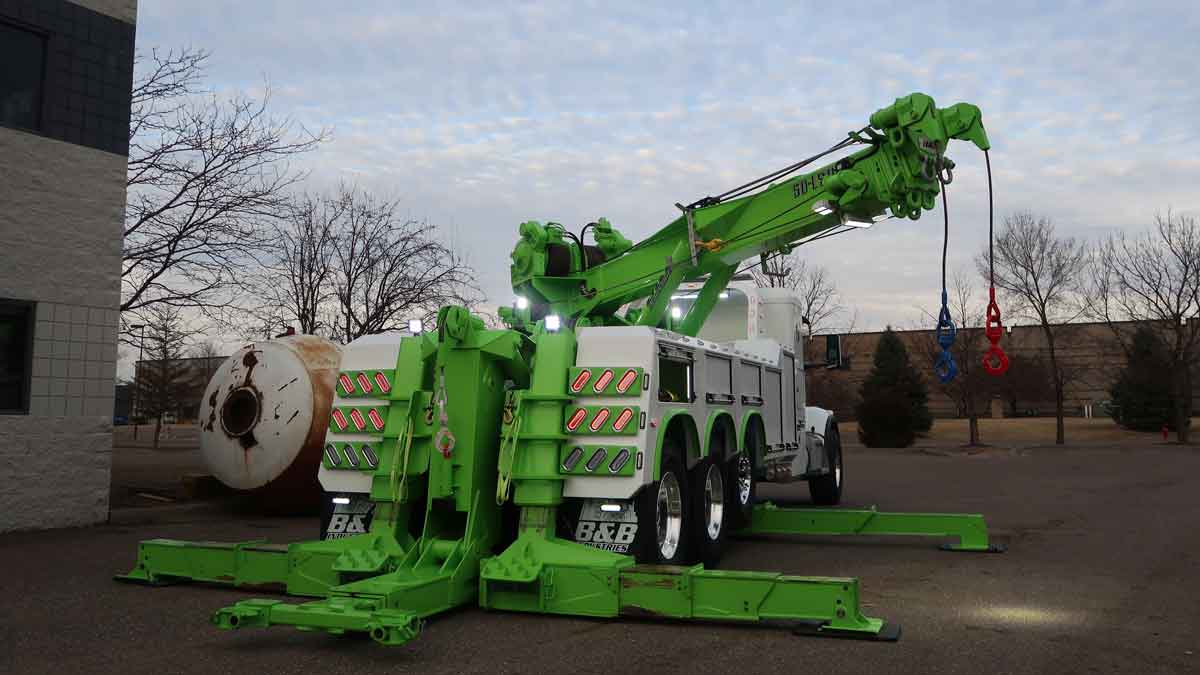

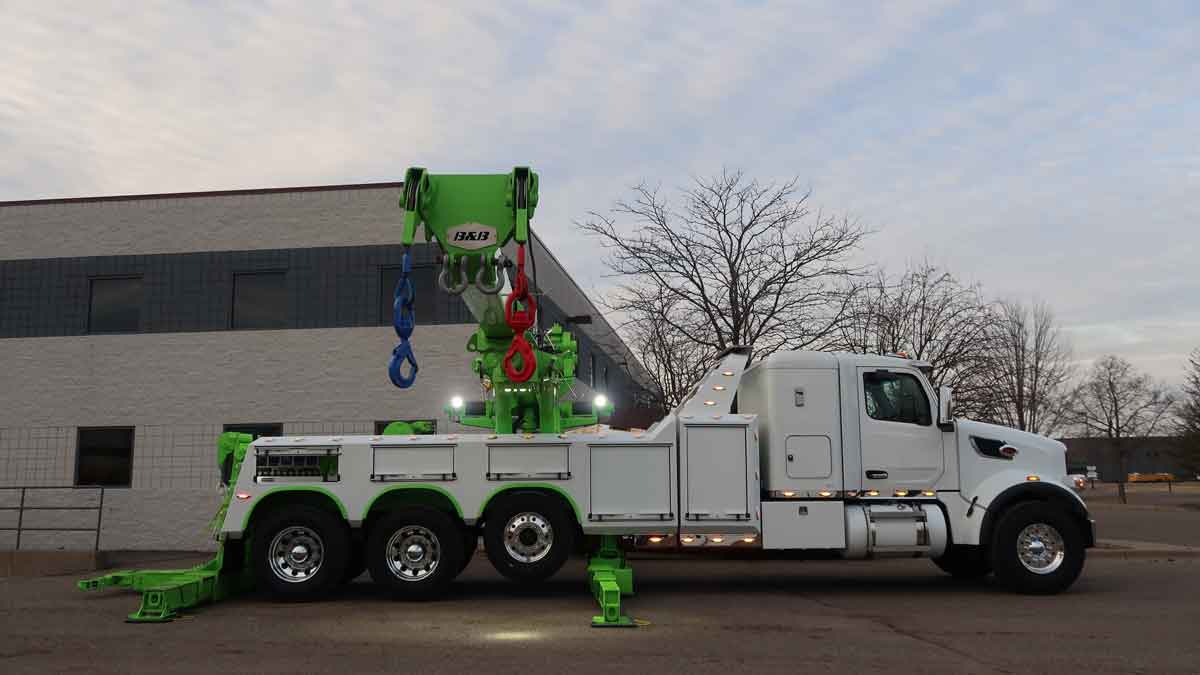

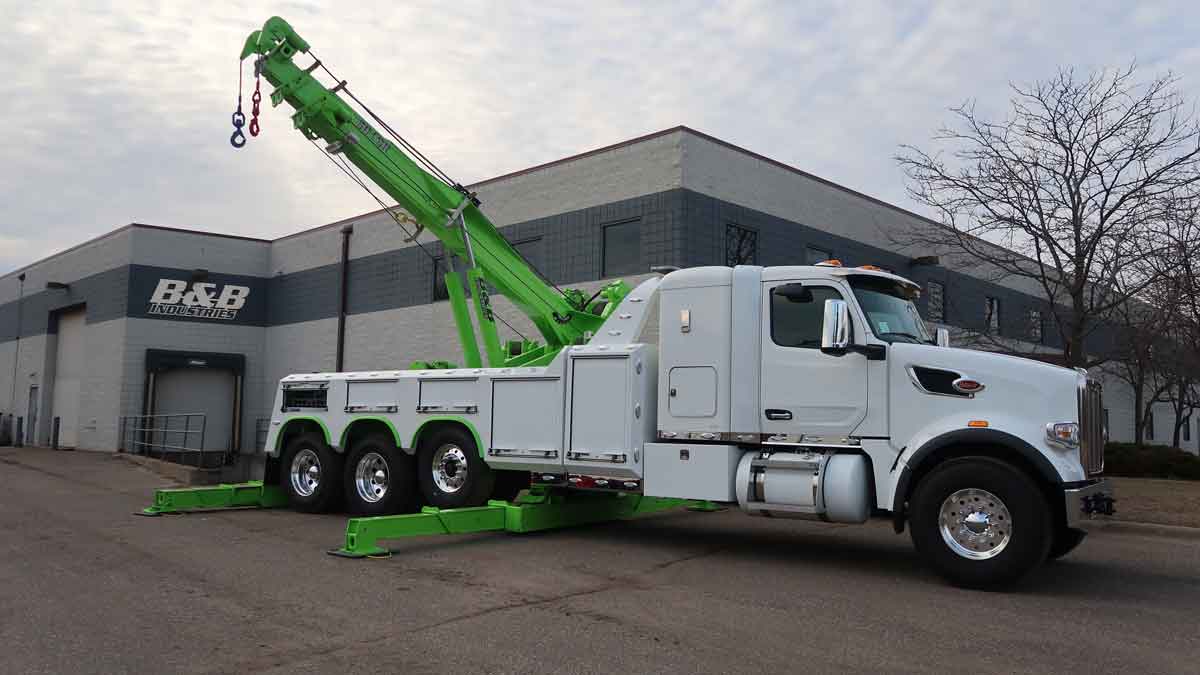

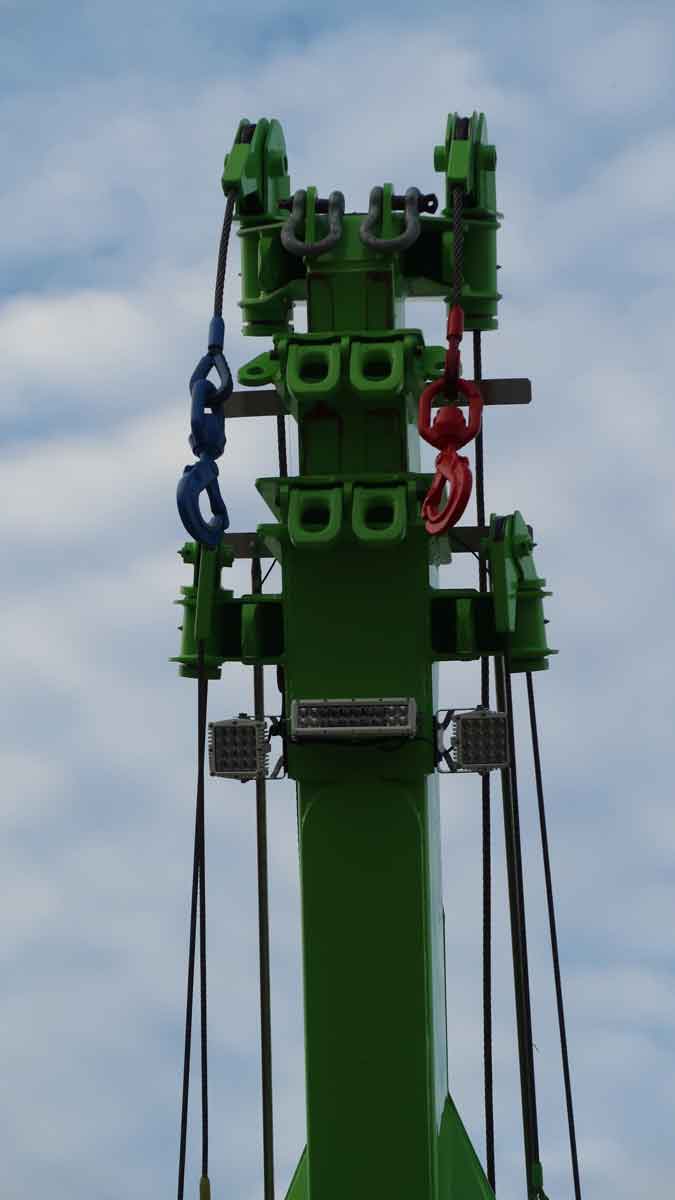

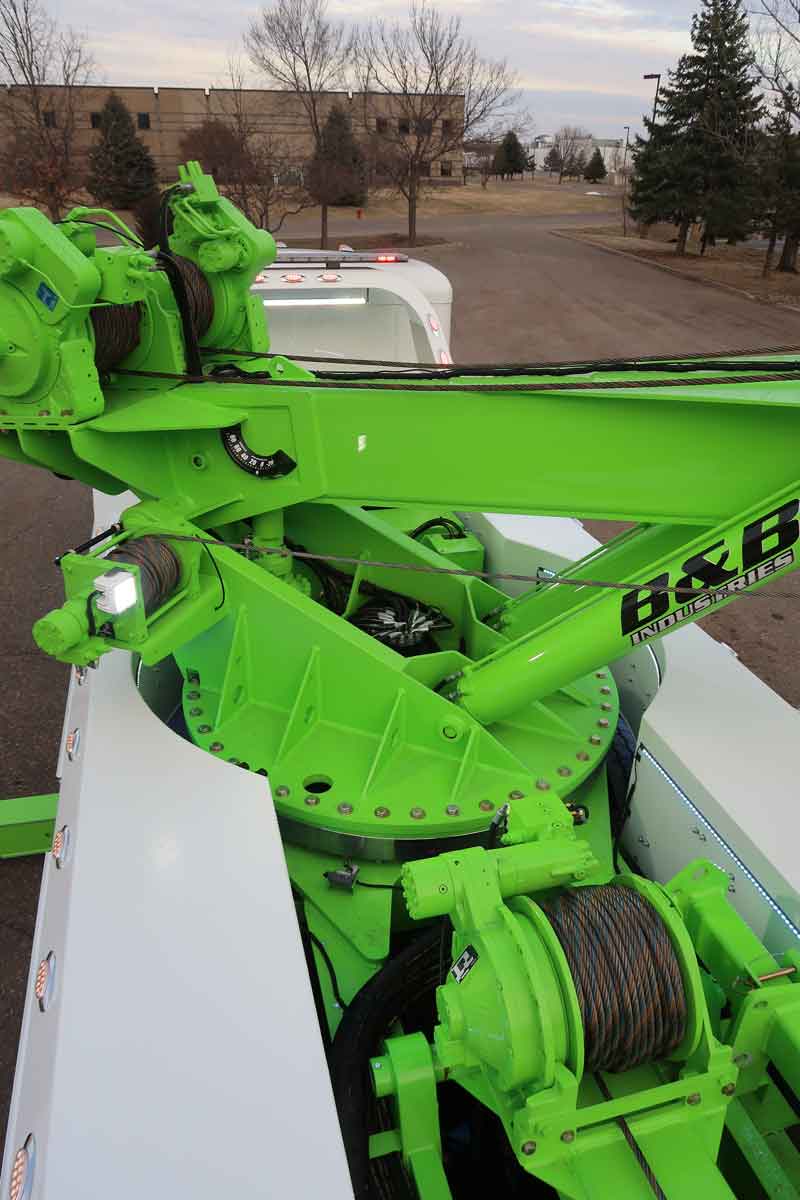

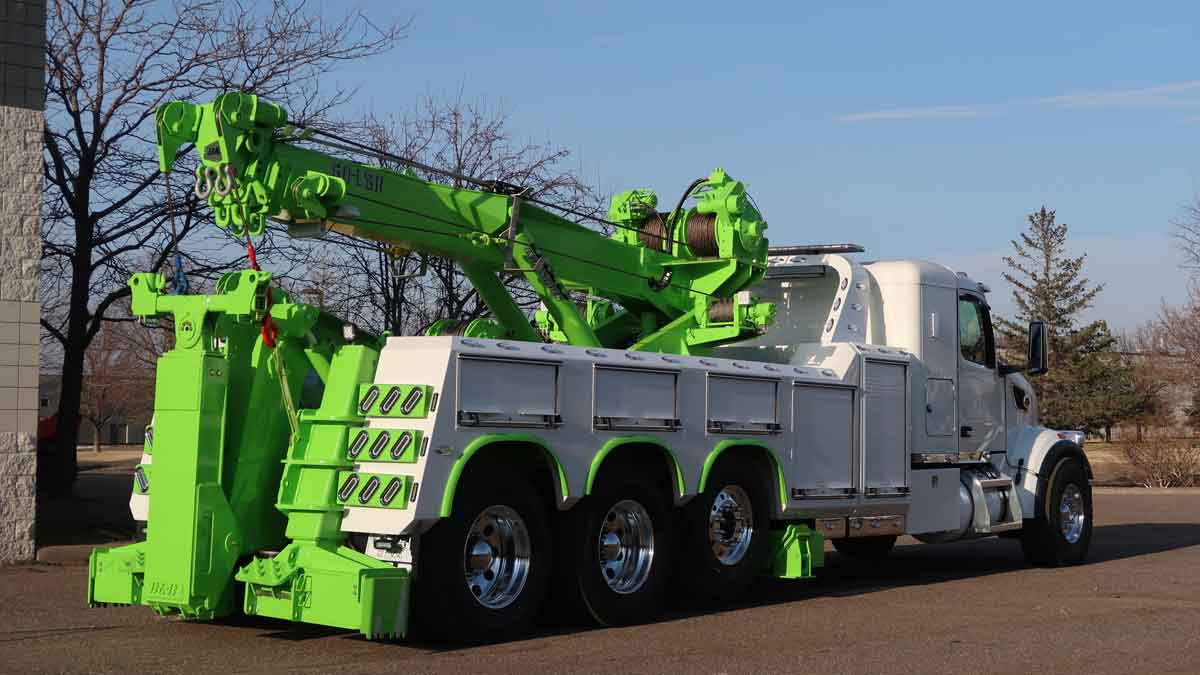

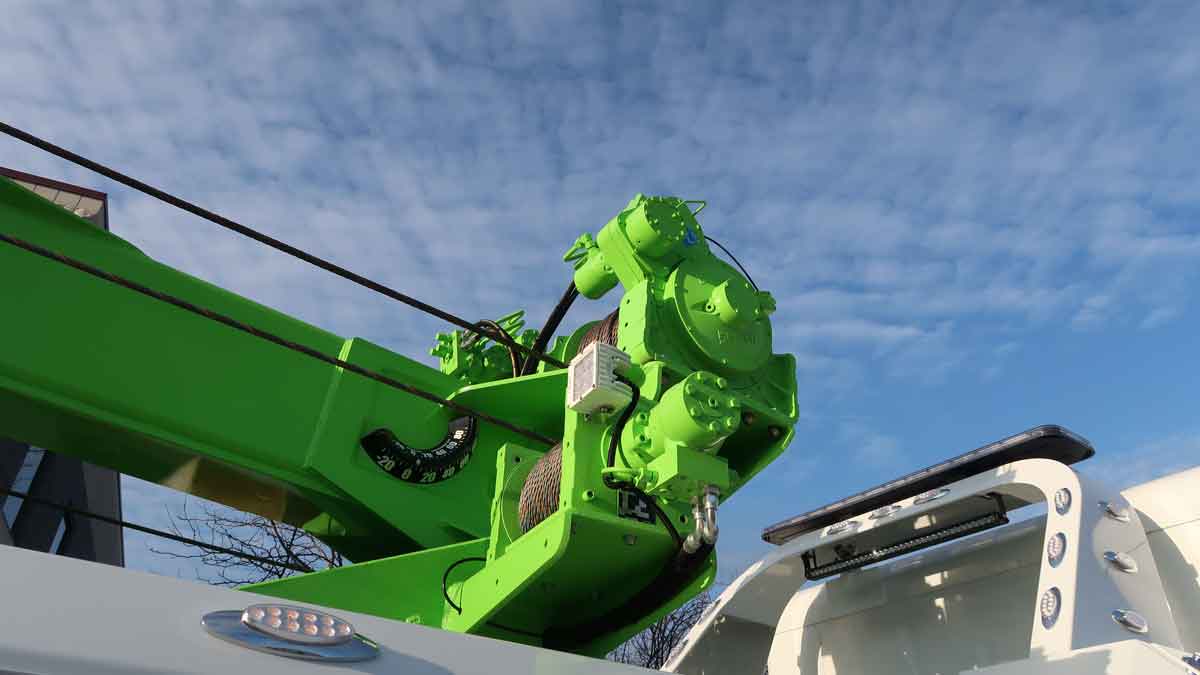

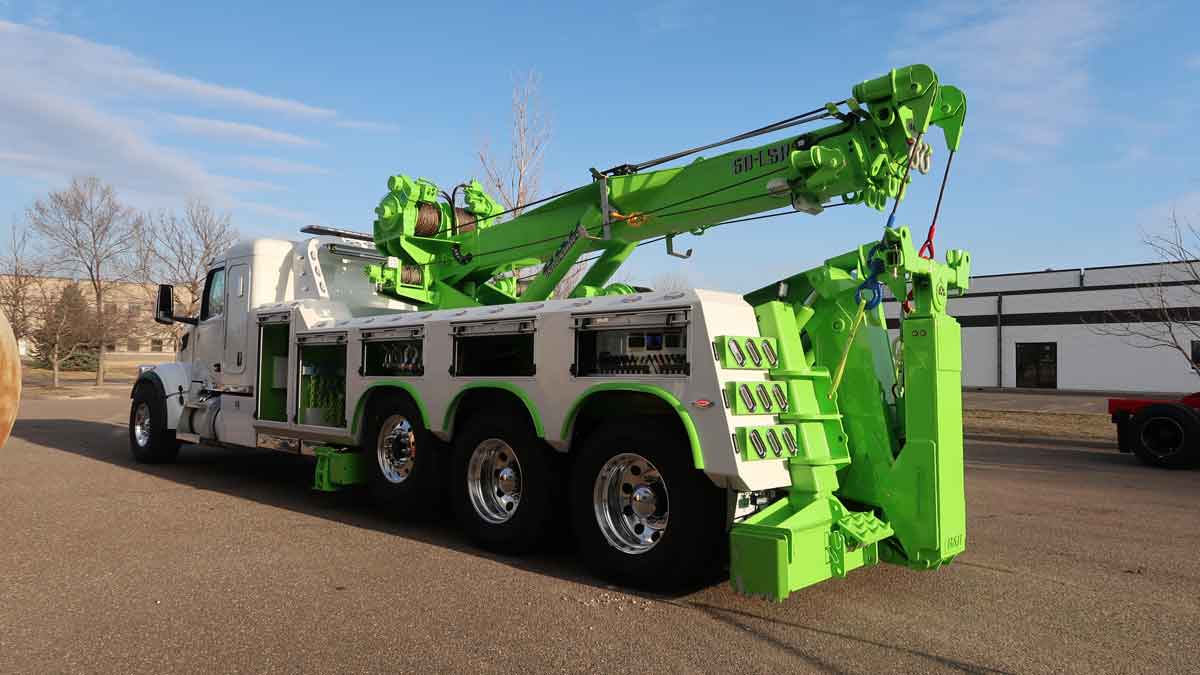

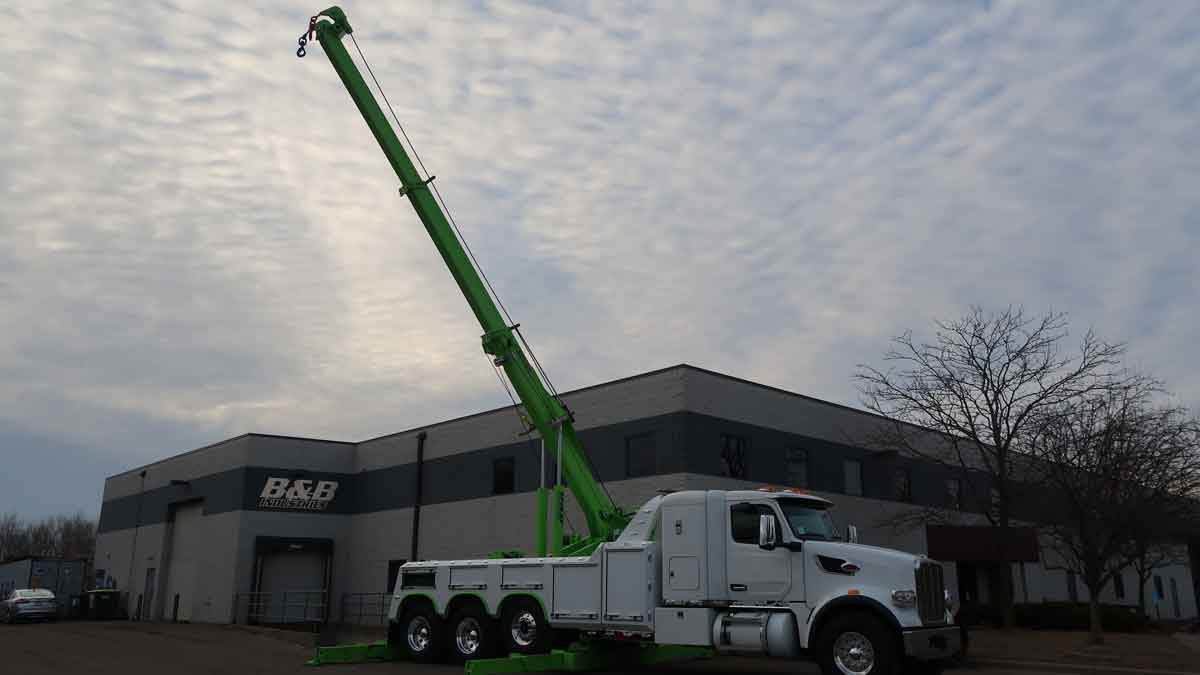

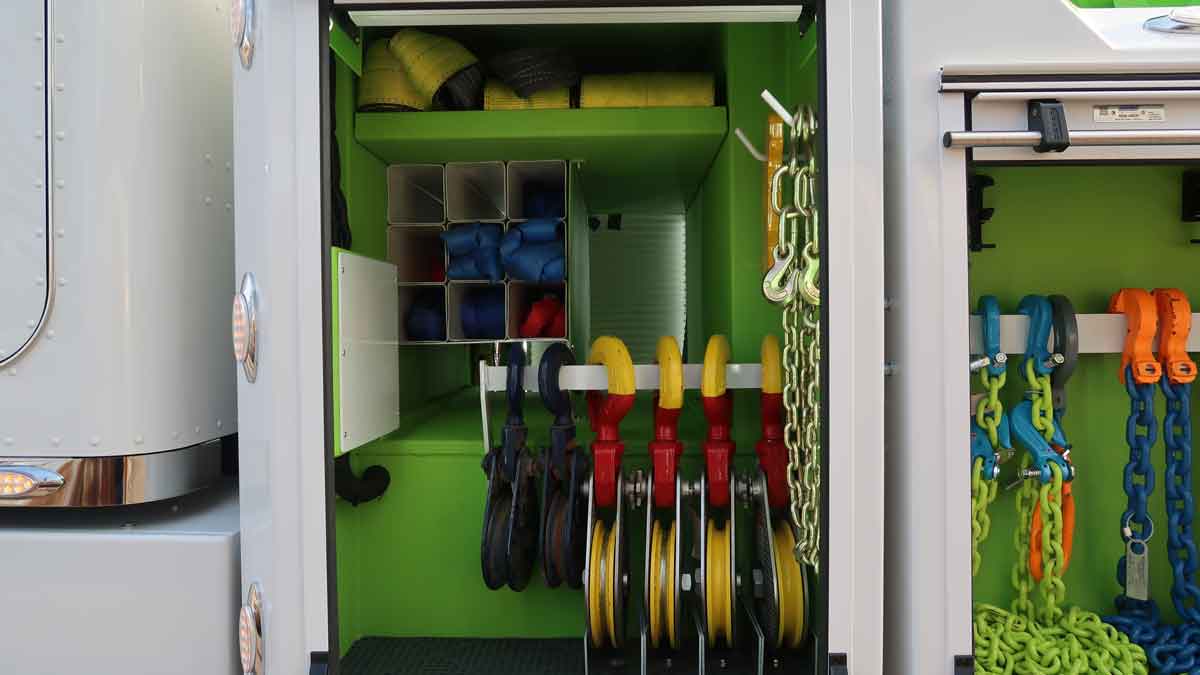

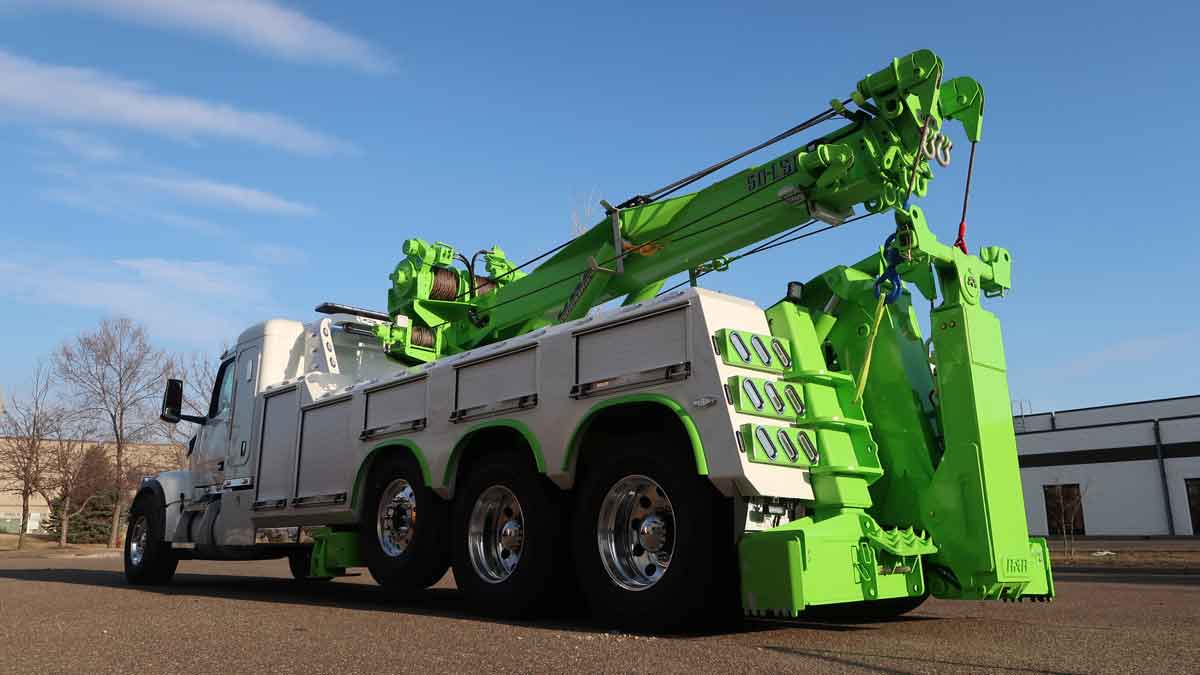

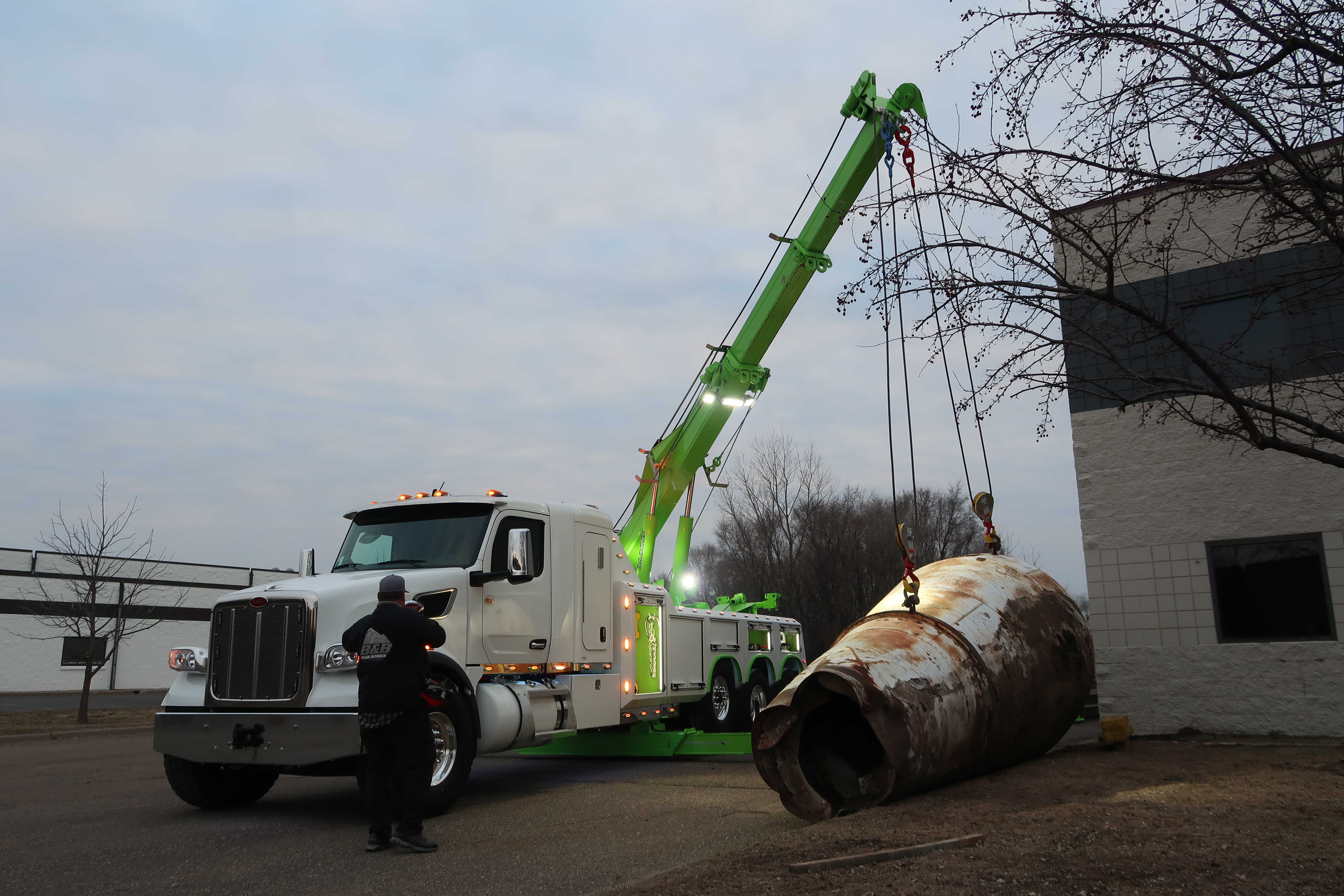

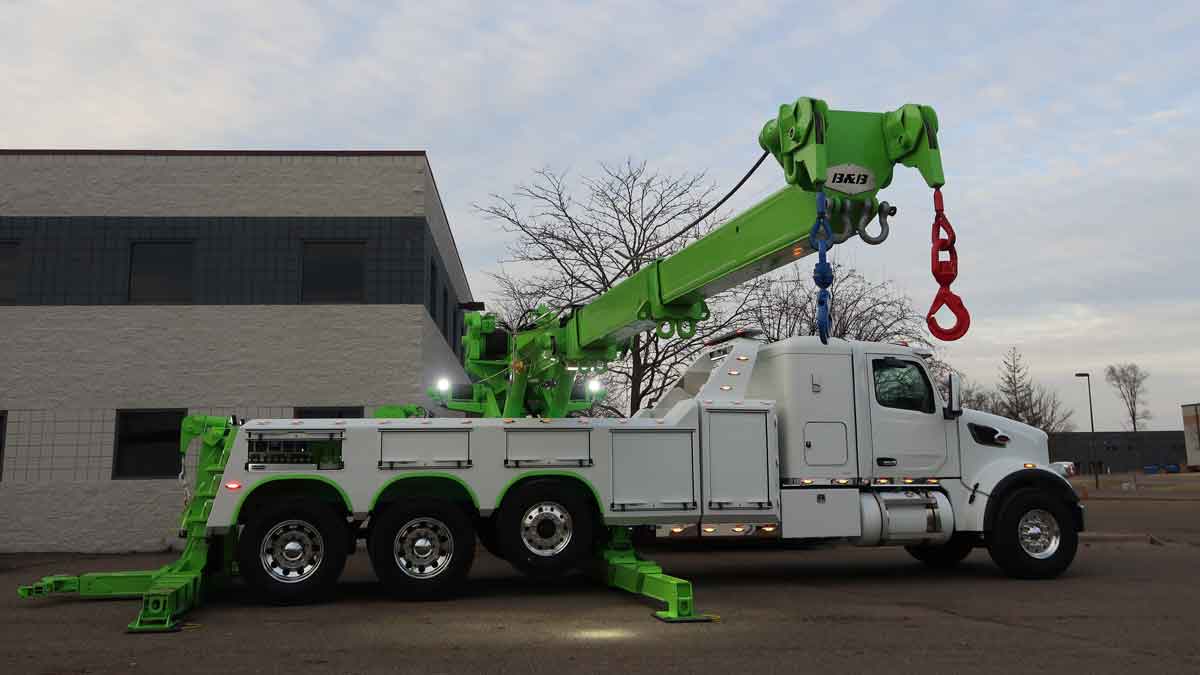

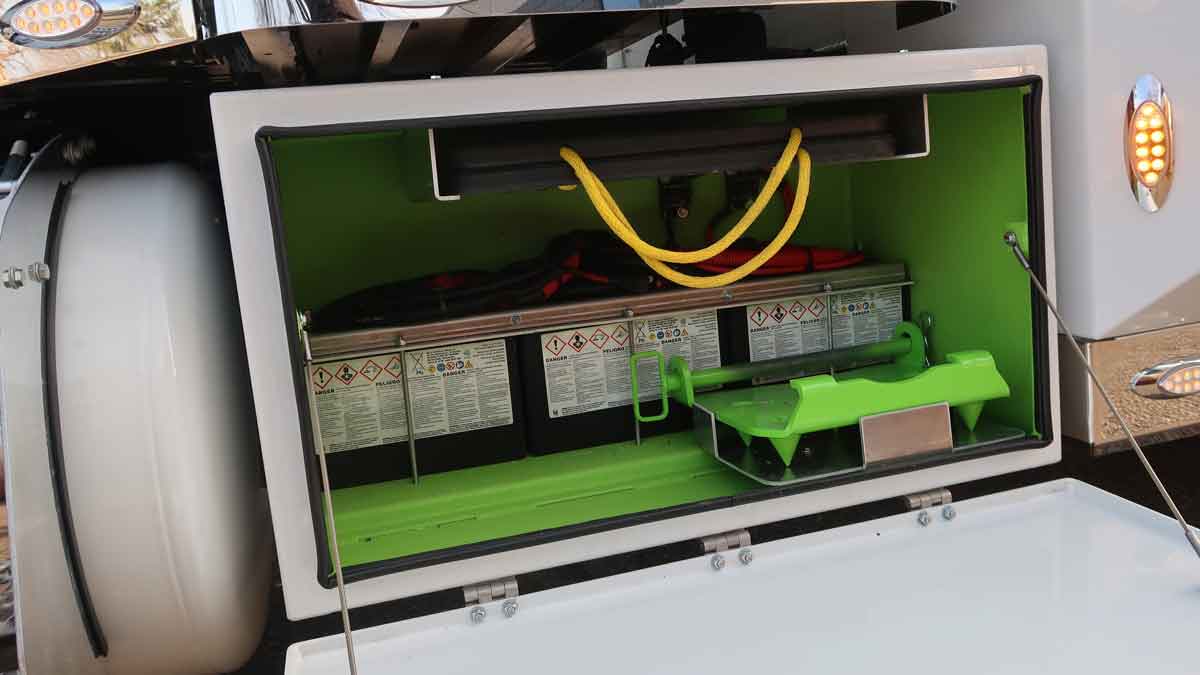

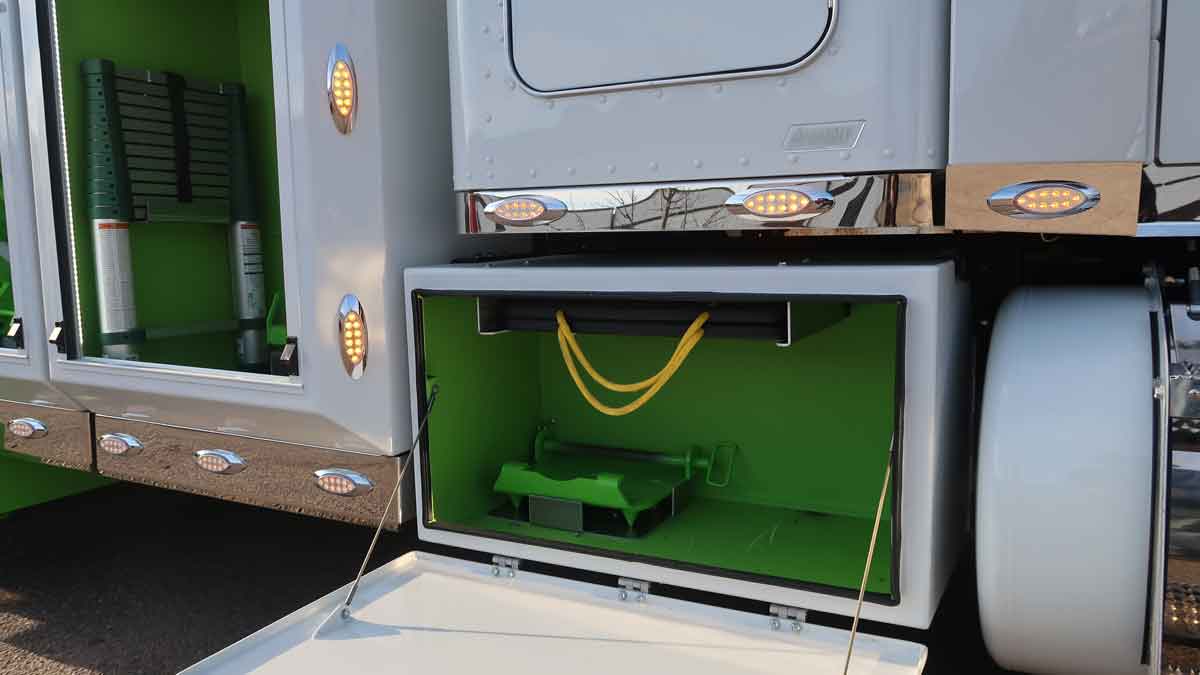

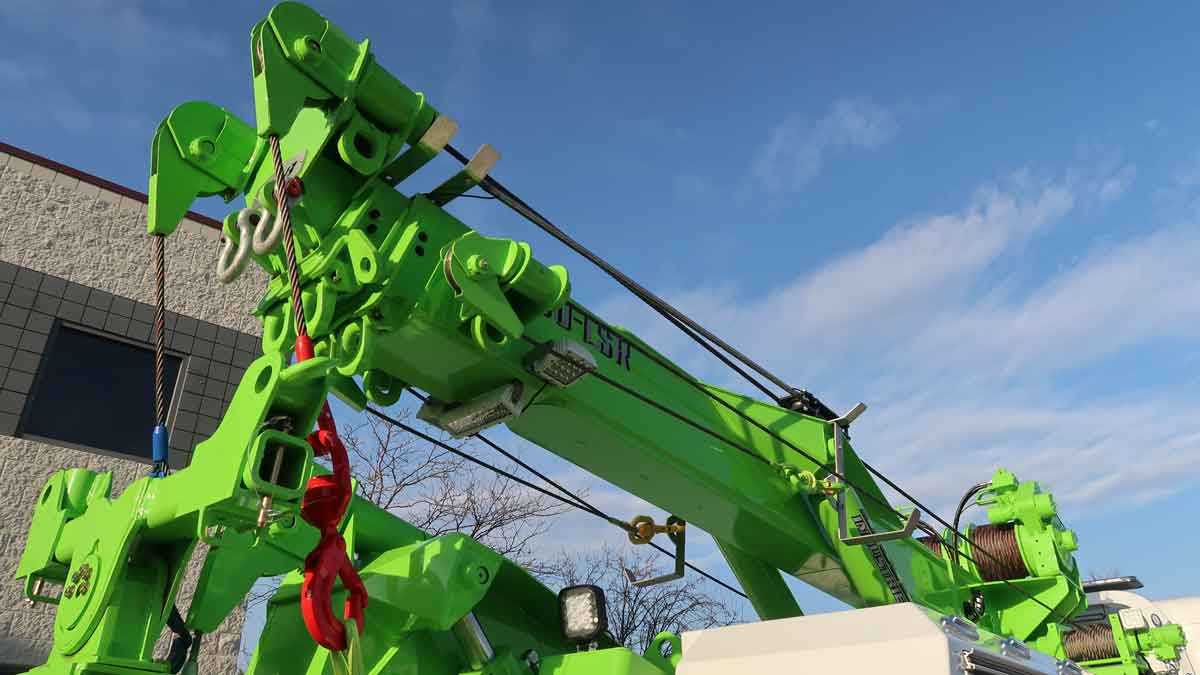

85 Ton Rotator Image Gallery
